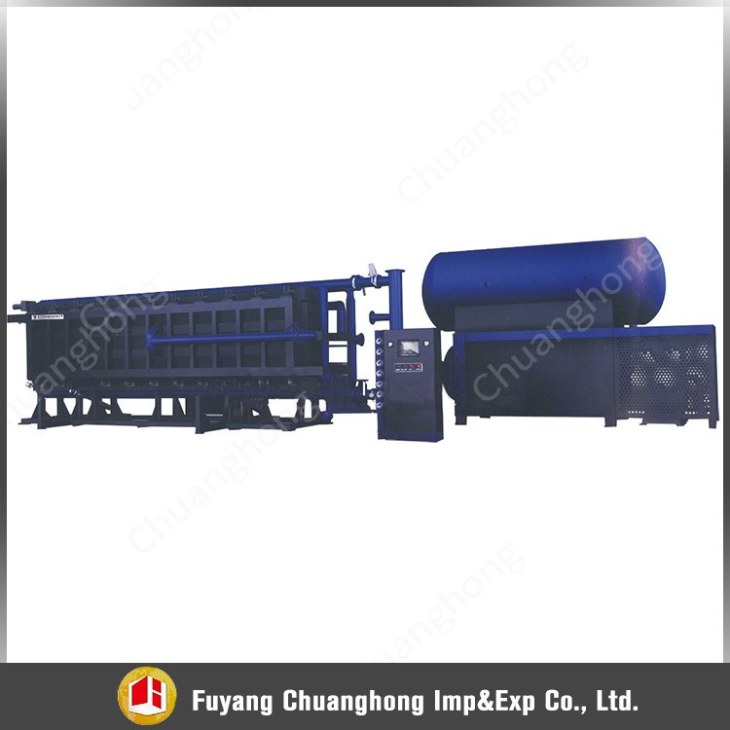

Vacuum Block Moulding Machine

Main features1.High quality steel welding and heat treatment, high mechanical strength, can withstand high power density expansion products2.Mould frame made of stainless steel, coated with Teflon, easy stripping3.The main intake of steam control valve is pneumatic valve, good sealing and long life4.Vapor transport using a combination of internal and external piping, evenly steaming, stable pressure, rapid prototyping5.Using hydraulic system mold clamping, stable and reliable6.Automatic feeding, convenient and high efficiency7.High vacuum system and a condensing device, rapid protpryping, low moisture8.Automatic computer control system, color touch-screen control, easy to operate9.Weighing shelf is available to buy individual according to customer requirementsTechnical specificationsSpecificationsItemUnitGJ-IIID-2000GJ-IIID-3000GJ-IIID-40 00GJ-IIID-6000GJ-IIID-8000Moul d Sizemm2040*1240*10403050*1240*10404070*12706090*12408120*1240*1040*104 0*1040Max Products Sizemm2000* 1200*10003000*1200*10004000*12006000*12008000*1200*1000*1000*1000Steam SystemInlet SizemmΦ100Φ100Φ15 0Φ150Φ150Consumptionkg/cycle30-5040-7055-8570-13080-150Inlet PressureMpa0.5-0.80.5-0.80.5-0.80.5-0.8 0.5-0.8Compressed AirInlet SizemmΦ50Φ80Φ80Φ80Φ80Consumptionkg/cycle1-1.51.5-1.81.8-22-2.32.2-2.5I nle t Pressurempa0.5-0.80.5-0.80.5-0.80.5-0.80.5-0.8InjectNumber of injectorspcs68101418Injectors Sizemm 7070707070Drainage Size Φ100Φ125Φ150Φ150Φ150Main Drainage SizemmΦ150Φ150Φ200Φ200Φ200Vacuum Drainag emmΦ120Φ125Φ125Φ125Φ125Condensation DrainagemmΦ100Φ125Φ125Φ125Φ125Cycle Tme(15g/l)min/cycle4567.510P owerfor vacuum pumpkw5.5*25.5*211*211*211*2PowerCapacitykw20.522.535.535.535.5Consump tionkw/h1414151 820L*W*Hmm5700*4300*32006700*4300*320011300*430011300*430015500**320*3 204300*320000Weightt688101216N ote: this information is for reference only, further details to be confirmed with the company url: http://www.chepsmachinery.com
