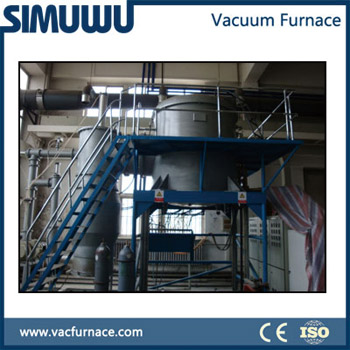

Vacuum bottom loading induction furnace
| Main technical data of Vacuum bottom loading induction furnace | |||||||
| Model |
Effective working Dimension mm(Φ×H) |
Max temperature (℃) |
Ultimate pressure (pa) |
Pressure rising rate(pa/h) |
IF power (KW) |
IF frequency (HZ) |
Temperature Uniformity(℃) |
| RVIS-160B | 500×800 | 2550 | 7×10-2 | 0.67 | 160 | 2000 | ±10 |
| RVIS-250B | 650×800 | 2550 | 7×10-2 | 0.67 | 250 | 2000 | ±10 |
| RVIS-350B | 650×1200 | 2550 | 7×10-2 | 0.67 | 350 | 1500 | ±10 |
| RVIS-500B | 750×1500 | 2550 | 7×10-2 | 0.67 | 500 | 1500 | ±15 |
| RVIS-750B | 900×2000 | 2550 | 7×10-2 | 0.67 | 750 | 1000 | ±15 |
Product description:
RVIS induction sintering furnace is a use of medium frequency induction heating sintering equipment.Suitable for high temperature sintering of tungsten copper alloy, aluminum nickel and cobalt permanent magnet, NdFeB,carbon fiber, graphite, carbon carbon composite material, silicon carbide products, tungsten molybdenum and other alloy material under vacuum atmosphere.The sintering temperature can reach up to 2550 ℃
Product features:
1.High automation, the whole process can be automated, with the stove working state simulation screen,the equipment running status can be displayed real-timely.It is equipped with the PLC programmable controller or the man-machine interface control system.
2.High security, PLC realizes the safety chain, with sound and light alarm when sensor broken accidentally and working temperature, water pressure, furnace pressure, water flow and water temperature gets too high.
3.Equipped with internal or external type fast cooling system to improve the work efficiency
4.Energy saving, tailor-made coil and insulation structure, stable output power, high power efficiency.
5.Adopts bottom -mounted structure,which is convenient to load and discharge.
