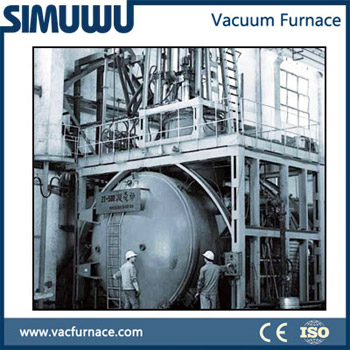

Vacuum consumable electrode arc condensing furnace
Product Description
Use: It is used for vacuum casting of titanium and its alloys .
Main technical data:
|
Model |
Capacity (Kg) |
Working voltage (V) |
Maximum current (A) |
Ultimate vacuum (Pa) |
Pressure rising rate (Pa/h) |
Electrode Diameter (mm) |
Centrifugal plate diameter (mm) |
Centrifugal plate speed ( r/min) |
|
VSC-50 |
50 |
20-40 |
20000 |
6X10-2 |
2 |
150-250 |
1000 |
50-500 |
|
VSC-100 |
100 |
20-40 |
25000 |
6X10-2 |
2 |
200-300 |
2000 |
50-500 |
|
VSC-150 |
150 |
20-40 |
25000 |
6X10-2 |
2 |
200-300 |
1400 |
50-400 |
|
VSC-300 |
300 |
20-40 |
30000 |
6X10-2 |
2 |
200-300 |
1500 |
50-400 |
|
VSC-500 |
500 |
20-40 |
60000 |
6X10-2 |
2 |
300-450 |
1800 |
50-300 |
Structure:
This equipment is mainly composed of fused casting chambers, elevated platform, electrode actuator, crucible and flip device, vacuum system, centrifugal casting system, hydraulic system, water cooling system, pneumatic system and electrical control system etc.
Adopts horizontal double door structure, convenient to operate and maintenance, adopts servo motor control, with higher sensitivity, more stable and reliable;
Computer monitoring system that can control the whole process, records critical data of the production process, and draw the curve, implement the data collection and storage, providing data support for the production. With a function of a real-time display of the equipment operation.
