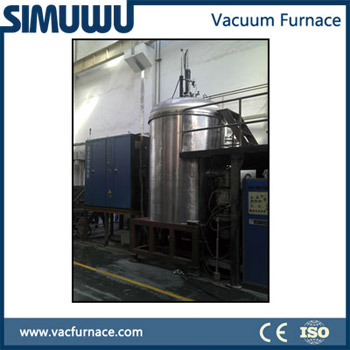

Vacuum induction high temperature graphitization furnace

Main technical data of Vacuum induction high-temperature graphite furnace

Model

Effective working

dimension

mm(Φ×H)

Max

temperature()

Ultimate

pressure

(Pa)

Pressure

rising rate

(Pa/h)

IF

power

(KW)

IF frequency

(HZ)

Temperature

Uniformity

()

RVIG-100

200×300

2800

3×10-1

0.67

100

2500

±10

RVIG-160

400×800

2800

5×10-1

0.67

160

2500

±10

RVIG-250

500×1000

2800

5×10-1

0.67

250

2000

±10

RVIG-350

650×1200

2800

7×10-1

0.67

350

1500

±10

RVIG-500

750×2000

2800

7×10-1

0.67

500

1500

±15

RVIG-750

900×2000

2800

7×10-1

0.67

750

1000

±15

Vacuum induction high temperature graphitization furnace is the use of high-temperature graphite induction heating principle. Under vacuum or inert gas conditions, by having the induction coil generate an alternating magnetic field, the graphite crucible of an eddy current induced in the coil by self heating, the high temperature graphite crucible radiate to the workpiece and achieve the required temperature.

It is mainly used in the graphitization, sintering processing of carbon material, carbon fiber and other composites materials.

The main features

1 High automation, the whole process can be automated, with stove working state simulation screen,the equipment running status can be displayed real-timely. It is equipped with the PLC programmable controller or the man-machine interface control system.

2 High security, PLC realizes the safety chain,with sound and light alarm when sensor broken accidentally and working temperature, water pressure, furnace pressure, water flow and water temperature gets too high.

3 Equipped with internal or external type fast cooling system to improve the work efficiency

4 The application of advanced instrument, such as temperature, vacuum detection and sensing element to ensure equipment reliability.

5 Energy saving, tailor-made coil and insulation structure, stable output power, high power efficiency.
