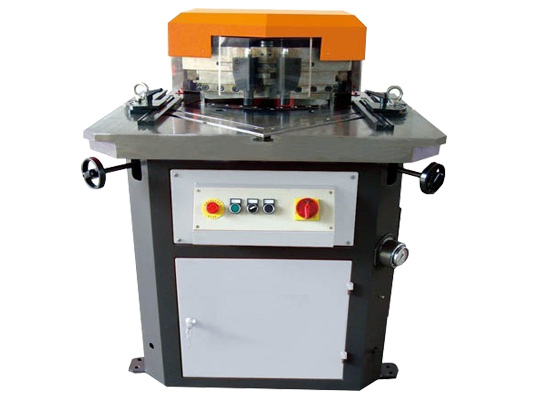

Variable Angle Notching Machine
Variable Angle Notching Machine
1. Used to cut metal plate with high cutting speed and high precision cutting.
2. Safe and reliable in performance
3. Widely used in auto, ships, elevators, electrical equipment, pipelines, kitchen utensils, stainless steel products, and many other areas.
The angle notching machine can be used to cut metal plate with high cutting speed and high precision cutting, the cutting machine can adjust according to thickness, safe and reliable in performance, widely used in auto, ships, elevators, electrical equipment, pipelines, kitchen utensils, stainless steel products, and many other areas.
STANDARD EQUIPMENT
1. The notching machine is under hydraulic notching machine drive.
2. cutting angle range of angle adjustable notching machine is 40°~135°
3. Table, the first frame, fuel tank base, knife blocks are made of high strength steel structure of the whole.
4. Thickness were cut under the knife gap adjustment function automatically.For variable angle notcher with multi attachmentthe angle can be changed non symmetrical individually for each side. Cuts in a wide variety of materials and thickness (from 1mm to 6mm).
5. Stroke is adjustable, improve the cutting speed
6. The cutter is suitable for cutting Carbon Steel and Stainless Steel
7. Workbench, frame, the oil cylinder base, tool apron are high strength of the monoblock cast steel structure.
8. Protect cover to avoid contact with cutting parts to ensure safety of operators and equipment.
DETAILED PICTURES
| Item | Unit | QF28Y-4*200 | QF28Y-4*200B | QF28Y-6*200 | QF28Y-6*220B | |
| Min.Notching thickness | mm | 0.3 | 0.3 | 0.3 | 0.3 | |
| Max. Notching Thickness | Carbon steel | mm | 4.0 | 4.0 | 4.0 | 4.0 |
| Stainless steel | mm | 2.0 | 2.0 | 3.25 | 3.25 | |
| Notching Length | mm | 200 | 200 | 200 | 220 | |
| Stroke | mm | 50 | 50.0 | 60 | 60 | |
| Notching Angle Range | ° | 90°(Fixed) | 30°-130°(variable) | 90°(Fixed) | 30°-145°(variable) | |
| The speed of Notching | spm | 45 | 45.0 | 40 | 40 | |
| System pressure | mpa | 20 | 20 | 20 | 20 | |
| Blade Gap Adjustment | Automatic | Automatic | Automatic | Automatic | ||
| Motor | Kw | 3 | 4 | 5.5 | 7.5 | |
| Powe Requirement | Voltage | 220V(380)/3-Ph | 220V(380)/3-Ph | 220V(380)/3-Ph | 220V(380)/3-Ph | |
| Dimension | F.B. | mm | 1350 | 1450 | 1550 | 1550 |
| L.R. | mm | 1400 | 1550 | 1400 | 1600 | |
| Height | mm | 1450 | 1550 | 1580 | 1650 | |
| Gross Weight | Kg | 1650 | 2150 | 1950 | 3850 | |
|
Serial No. |
Part Description |
Brief instruction |
Country of origin |
|
1 |
Electrical components |
Schneider Electrical |
French |
|
2 |
Main Motor |
Siemens |
Germany |
|
3 |
Oil Pump |
SUNNY |
America |
|
4 |
Seal Ring |
NOK |
Japan |
|
5 |
Foot switch |
KACON |
Korea |
|
6 |
Foot pedal switch |
China famous brand |
China |
|
7 |
Safe cover |
GLDMA |
China |
|
8 |
Frequency convertor |
GLDMA |
China |
|
9 |
Shearing & Punching parts |
GLDMA |
China |
|
10 |
Electricity leakage protection |
■Yes□No |
|
|
11 |
Safety standards |
■CE□CSA■NR-12□OSHA |
|
CONTACT US
+86 18055583445
+86-0555-2222129
Bowang New Town area of new materials industrial park, Ma'anshan city, Anhui Province, China
