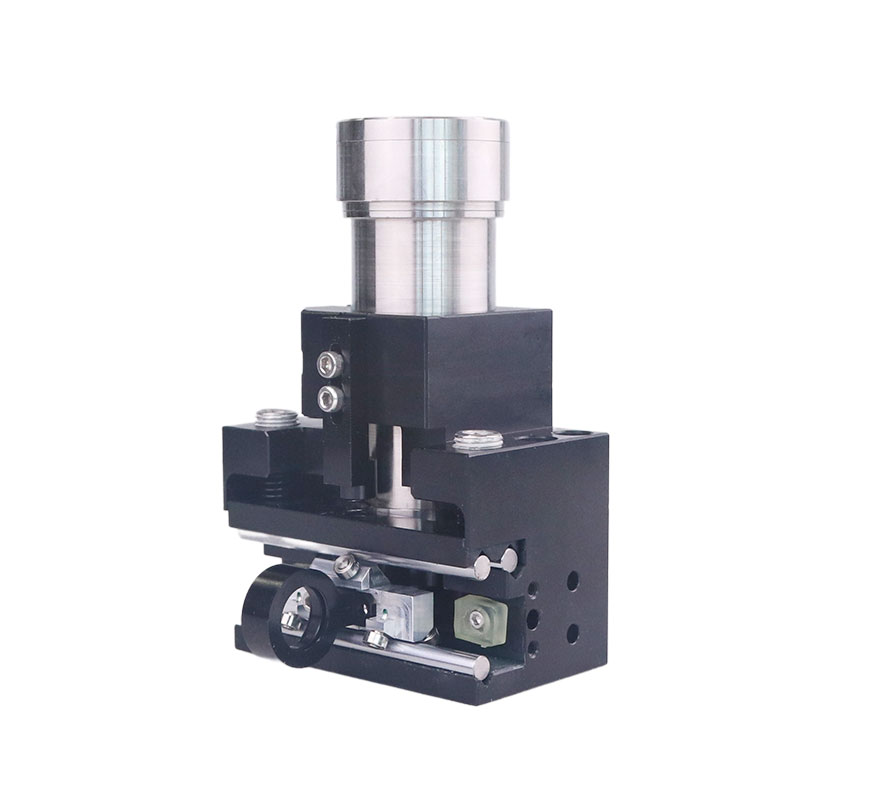

VCM G2
VCM G2 adopts full digital galvanometer driver, digital driver board of basic FPGA, stable performance, not easy to be disturbed, flexible to use, easy to debug. Modular design, easy to assemble. According to customer requirements, we can choose lenses with different aperture, high positioning accuracy and small drift. Mainly used for dynamic focusing, can be combined with the laser scanner head to form 3D modules, widely used in 3D marking, 3D printing, large area processing and other laser marking applications.
Key Features Of Vcm G2
The VCM G2 adopts a new mechanical design that cleverly converts the rotary motion of the galvanometer into linear motion
The dynamic following error is less than 1.5ms, and the response speed is improved by more than 50% compared to traditional voice coil motors
All-digital motor drive scheme, stable performance
Specifications Of Vcm G2
|
VCM G2 |
|
|
Input Beam Aperture（mm） |
≤22 |
|
Output Beam Aperture（mm） |
|
|
Stroke（mm） |
9 |
|
Tracking Error（ms） |
1.5(≤16mmLens diameter) 2.2（18mm-22mmLens diameter） |
|
Typical Speed (mm/s) |
≤100 |
|
Focus speed（m/s） |
/ |
|
Repeatability (μm) |
＜1 |
|
Nonlinearity（%） |
2 |
|
Long-Term Drift Over 8 hours (μm) |
＜10 |
|
Power Requirement |
±15VDC, ≥3A |
|
Digital Interface |
XY2-100 |
|
Operation Temperature（℃） |
25±10 |
Hans scanner provides galvo scan head, galvanometer scanner, galvo scanner and etc. If you want to know more, pleasecontact us.
