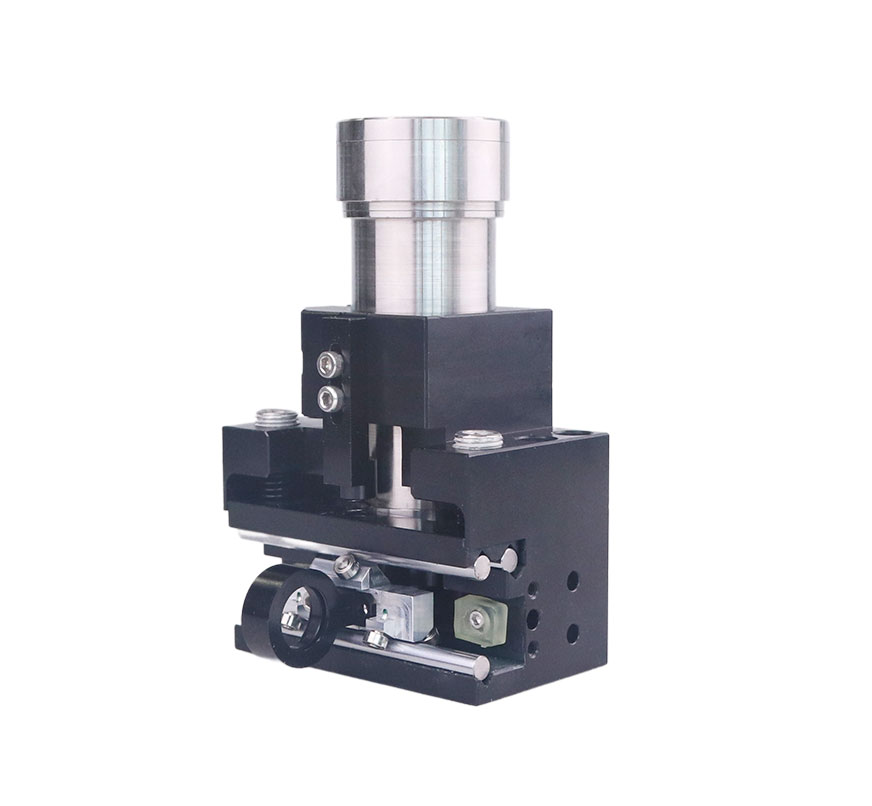

VCM G2

VCM G2 adopts full digital laser galvanometer driver, digital driver board of basic FPGA, stable performance, not easy to be disturbed, flexible to use, easy to debug. Modular design, easy to assemble. According to customer requirements, we can choose lenses with different aperture, high positioning accuracy and small drift. Mainly used for dynamic focusing, can be combined with the laser galvo scan head to form 3D modules, widely used in 3D marking, 3D printing, large area processing and other laser marking applications.

Key Features Of Vcm G2

The VCM G2 adopts a new mechanical design that cleverly converts the rotary motion of the galvanometer into linear motion

The dynamic following error is less than 1.5ms, and the response speed is improved by more than 50% compared to traditional voice coil motors

All-digital motor drive scheme, stable performance

Specifications Of Vcm G2

VCM G2

Input Beam Aperturemm

≤22

Output Beam Aperturemm

Strokemm

9

Tracking Errorms

1.5(≤16mmLens diameter)

2.218mm-22mmLens diameter

Typical Speed (mm/s)

≤100

Focus speedm/s

/

Repeatability (μm)

1

Nonlinearity%

2

Long-Term Drift Over 8 hours (μm)

10

Power Requirement

±15VDC, ≥3A

Digital Interface

XY2-100

Operation Temperature

25±10

Galvanometer Application

Laser Marking

Laser Welding

Laser Drilling

Laser Cutting

Micromachining

Medical Aesthetic

Ophthalmic Imaging

3D Printing

Lithium Battery

Hans scanner independently develops and produces a series of laser scanning heads (7mm, 10mm, 14mm, 20mm, 30mm, 50mm), voice coil motor and galvanometer system based on motion control technology, including 3D large area dynamic focusing system, high power galvanometer welding system, 5-axes drilling galvanometer, 4-axes platform linkage galvanometer, polygon scanning galvanometer, medical aesthetic fractional galvanometer, and weld tracking detection system.
