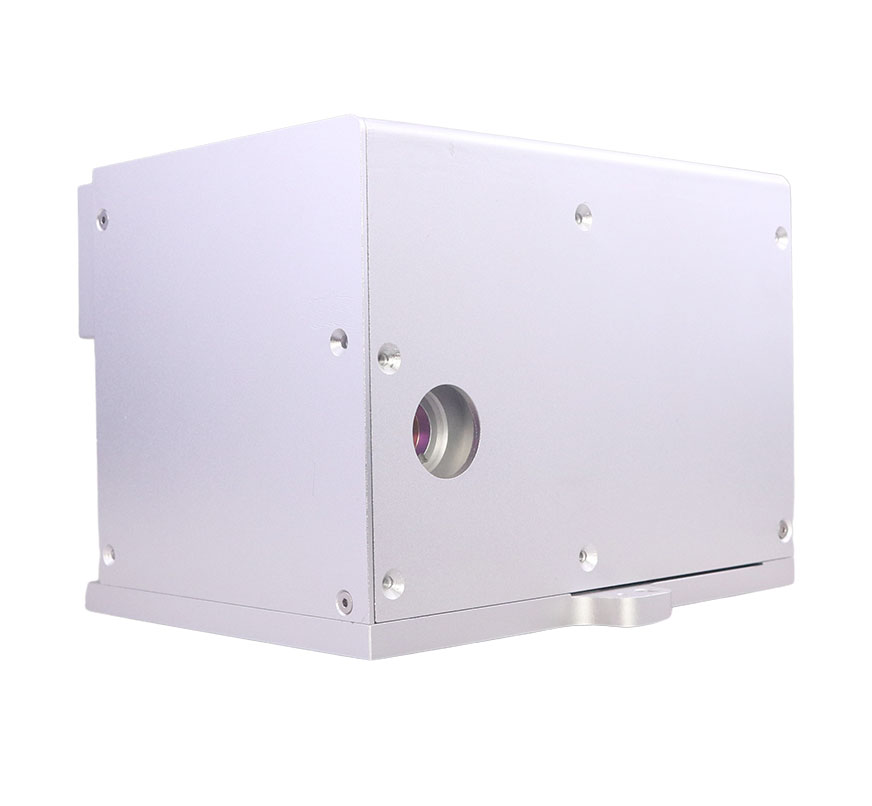

VCM Z
The traditional Z-axis focusing module adopts voice coil motor or galvanometer structure, which has high load quality, slow response time and low dynamic performance. VCM Z-axis focusing module breaks through the traditional perspective optical path design scheme and greatly improves the dynamic performance of the Z-axis focusing module. The highly innovative Z-axis structure design greatly reduces the following error, making the dynamic performance of Z-axis and XY galvo match perfectly, and ensures that the scanning speed of the 3D galvanometer is not restricted by the dynamic performance of Z-axis.
Key Features Of Vcm Z
Use only reflective elements, reducing thermal lensing in high power applications
No complex mechanical structure, ensure the stability of long time operation
Modular design, easy to assemble
Highly innovative Z-axis structure design significantly reduces following error and perfectly matches z-axis dynamic performance to XY axis
Specifications Of Vcm Z
|
|
|
|
Input Beam Aperture（mm） |
14 |
|
Output Beam Aperture（mm） |
14 |
|
Stroke（mm） |
±15(Focus range) |
|
Tracking Error（ms） |
≥0.15 |
|
Focus Speed（m/s） |
up to 20m/s (f=160mm) |
|
Repeatability (μm) |
＜1 |
|
Nonlinearity（%） |
0.4 |
|
Long-Term Drift Over 8 hours (μm) |
＜6 |
|
Power Requirement |
±15VDC, ≥3A |
|
Digital Interface |
XY2-100 |
|
Operation Temperature（℃） |
25±10 |
Hansscanner provides galvo scan head, galvanometer scanner, galvo scanner laser and etc. If you want to know more, pleasecontact us.
