Ventilator Circuit Support Arm (Heavy Type)
Quantité : 5000 sets Prix : USD 15--USD 2200
Ventilator Circuit Support Arm (Heavy Type)

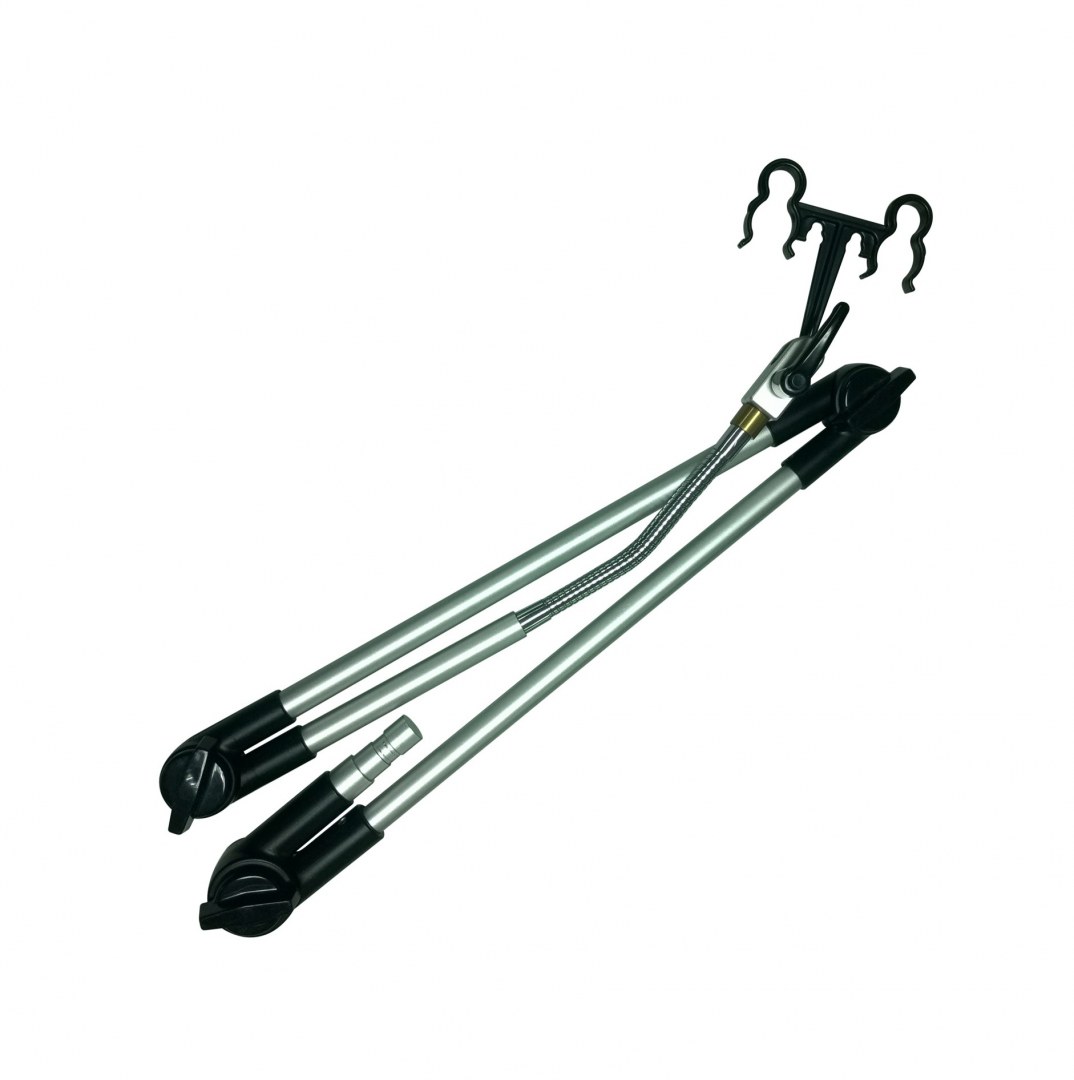

Pigeon Medical Circuit Support Arm (Heavy Type) hook can offers ventilator accessories including our utility clamp that features three different ways of clamping - rail systems, poles, and table tops. The clamp can be used for many different purposes including holding blender bracket accessories, cylinder holders, and telescoping top IV Poles.An unsecured tube can create a hazard for both the patient and medical staff. Ensure a safe and secure connection from the ventilator to the patient at all times by using our stainless steel CS-arm for quality and safety.
Working Principle of Circuit Support Arm (Heavy Type)
Pigeon Medical Circuit Support Arm provides a secure connection for the Ventilator, CPAP and Anesthesia Machine breathing circuit that will be maintained at all times. The clamp of this heavy circuit support arm can be used for many different purposes including holding blender bracket accessories, cylinder holders, and telescoping top IV Poles. An unsecured tube can create a hazard for both the patient and medical staff. Ensure a safe and secure connection from the ventilator to the patient at all times by using our stainless steel CS-arm for quality and safety.
Features of Circuit Support Arm (Heavy Type)
Easy but lightweight.
Easy to operate.
Capable of holding at least 4lbs in either still or moving condition.
The special design arm shafts will not come off after as many as seven unfastening turns.
Pivot torque nut in center of hinges is capable of sustaining considerable torque, insuring support strength integrity
The friction rings are strong enough to tolerate the maximum tightening force without deforming or wearing out.
Shiny finished surfaces are easy to clean and maintain.
The flex pipe, when bent vertically or horizontally to a position at an angle as large as 30 degrees, will hold its position without any self-return movement.
Specification of Circuit Support Arm (Heavy Type)
Model |
Circuit Support Arm (Heavy Type) |
Product Name |
Breathing Circuit Ventilator Support Arm Hose Holder |
Material |
Stainless steel/Aluminum |
Diameter of arm pipe |
16mm |
Size(big) 16mm |
400 x 420 x 420 x 120mm |
Maximum Bearable Weight |
1.5 kg |
Joint Adjusting Rate |
>2,500times |
Lifespan of Plastic Component |
>5years |
OEM |
Available |
Type |
Breathing apparatus |
Surface Treatment |
Oxidation, electroplating |
Practical Application of Circuit Support Arm (Heavy Type)
01
Mechanical ventilation
02
Adult HFNC
03
Bubble CPAP
04
Pediatric CPAP respiratory pipeline
05
Breathing pipeline of anesthesia machine
Pigeon Medical is a professional respiratory medical equipment suppliers, we provide respiratory aids equipment, ventilator circuit holder, ventilator arm, hospital respiratory equipment, etc. Contact us to know more.
