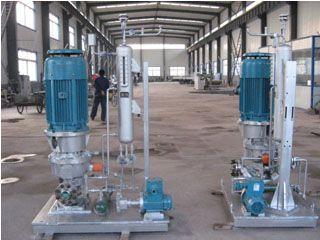

Vertical High-speed Centrifugal Pumps

Vertical High-speed Centrifugal Pumps

File description

HSP-V vertical high-speed centrifugal pumps can replace imported high-speed pumps and have features of good performance, compact structure and high reliability. Their parts and components can be interchangeable with imported products. They can replace multi-stage pumps and reciprocating pumps. Their maximum flow rate is 120m3/h, maximum head is 1920m, maximum suction pressure is 6.8MPaG, maximum power is 160KW and working temperature range is -130℃~+340℃.

Horizontal High-speed Centrifugal Pumps

File description

HSP-H horizontal high-speed centrifugal pumps are single-stage, single-suction and overhung pumps, which are mainly composed of motor, gearbox, pump unit, lubrication system and base plate. They have features of stable characteristic parameters, simple structures, easy maintenance, high reliability and long serve life. A backflow stabilizer is integrated into the GSB-W5/W7 pump units, which improves the pump performances at the low flow section and broadens the flow regulating ranges. Advanced high speed thrust bearings are adopted, which enables the suction pressure to reach 10.0 MPa.
