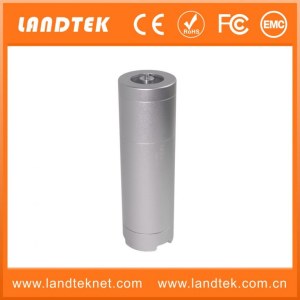

Vibration Calibrator VMC-606
Quantité : 2000 Prix : $1
Applications:
The Vibration Calibrator is a small, self-contained handheld shaker designed for quick and easy checking of accelerometers, vibration monitoring systems and recording systems.
Providing a known and controlled RMS vibration for verification of accelerometers weighing up to 150g.
Details:
| Operating Frequency | 159.2 Hz ± 0.5 % |
| Acceleration Output | 10 m/s² (RMS) ± 3% |
| Velocity Output | 10 mm/s (RMS) ± 3% |
| Displacement Output | 10 um (RMS) ± 3% |
| Transverse Output | < 5% |
| Distortion | < 3% |
| Maximum Load | 150 g |
| Ramp-Up Time | < 3 Seconds |
| Operating Conditions | Temperature : -10~40 °C Humidity : < 85 %RH |
| Internal Battery | 1x9V 6F22 |
| Size (Diameter x Height) | 56 mm x 200 mm |
| Weight (with batteries) | 900 g |
For more details,please do not hesitate to contact us.Thank you!
