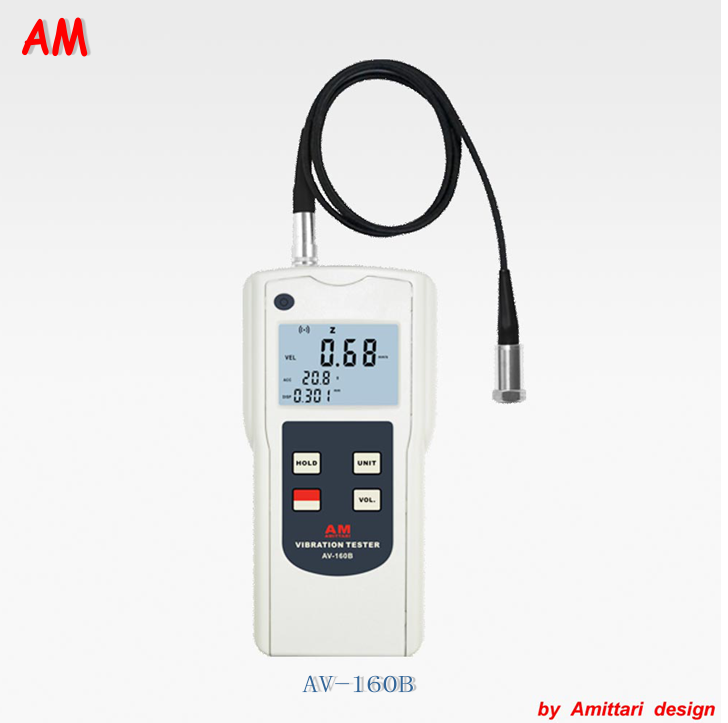

Vibration Tester AV-160B

Quantité : 1 piece

Product Description ​

The Vibration Tester can display the parameters of “Displacement”, “Velocity” and “Acceleration” sim ultaneously; Applied to the periodic motion measurements to detect moving mechanical imbalances and misaligned. Designed for on-site measuring various mechanical vibration, for quality control, runnin g time and prior equipment maintenance data. Selection of high-performance accelerometers to achieve accurate, replicable measurement It has a bearing condition measurement function.

Product Feature

* Can display the parameters of “Displacement”, “Velocity” and “Acceleration” simultaneously.

* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignmen t and other mechanical faults in rotating machines.

* Specially designed for easy on site vibration measurement of all rotating machinery for quality co ntrol, commissioning, and predictive maintenance purposes.

* Individual high quality accelerometer for accurate and repeatable measurements.

* Wide frequency range (10Hz~10kHz) in acceleration mode.

* AC output socket for headphones and recording.

* Optional headphones for use as electronic stethoscope.

* Bearing condition monitoring function.

* Use USB data output with connection PC.

* Provide Bluetooth data output choice.

Product Parameters

Transducer

Piezoelectric accelerometer

Accuracy

±5%+2 digits

Measurement Range

Displacement : 0.001-4.000 mm equivalent peak-peak / 0.04-160.0 mil

Velocity : 0.1-400.0 mm/s true RMS / 0.004-16.00 inch/s

Acceleration : 0.1-400.0 m/s² equivalent peak / 0.3-1312 ft/s² / 0.0-40g

Frequency Range

Displacement : 10Hz. ~ 1kHz.

Velocity : 10Hz. ~1kHz.

Acceleration: 10Hz. ~ 10kHz.

Operating Conditions

Temperature : 0-50 ℃

Humidity : below 95% RH

Analogue Output

AC output 0~2.0V peak full scale (load resistance: above 10k)

Power Supply

4x1.5vAAA (UM-4) Battery

Size

140x70x30mm

Weight

130g (Not including Batteries)

Product Accessories

Standard Accessories

Main Unit

Magnetic suction seat

Probe (cone) / Probe (spherical)

Portable box

Brochures

Piezoelectric sensor

Carrying Case

Operation Manual

Optional Accessories

Headset

USB data output

RS-232 data output

Bluetooth data output

Localisation : 306b2, No. 42 Huannan Dong Street, Huanhua Rd, Liwan District, Guangzhou, Guangdong, China, 510375 Guangzhou,
Personne à contacter : zoe su, 020 81622513
