VJ-H Series Manual Cleaning Type Industrial Dust Collector

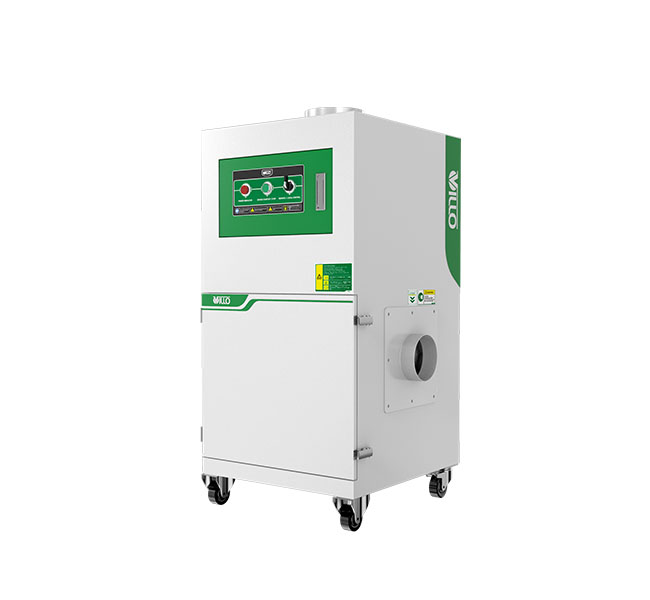

VJ-H Series is a simple industrial dust vacuum collector with large air volume, stable and reliable mechanical structure, small footprint, and flexible movement.

Parameters of VJ-H Series Manual Cleaning Type Industrial Dust Collection System

Model

VJ-1.5H

VJ-2.2H

VJ-3.0H

Voltage (V/Hz)

380 / 50

Power(kW)/ ( HP )

1.5 / 2.0

2.2 / 3.0

3.0 / 4.0

Starting current （A）

25

40

50

Rated current（A）

3.4

4.8

6.4

Max air flow
(m³/h)/ ( CFM )

1500 / 883

2200 / 1295

3000 / 1765

Dia. air inlet
(mm) / (in)

Ø 150 /6

Ø 200 / 8

Noise dB (A)

73±2

75±2

77±2

Filter area
( m²) / ( sq.ft )

8 / 86

Filter efficiency

>99%

Filter cleaning method

Rotary vane dust vibration structure

Capacity of the dust
container ( L ) / ( gal )

15 / 4.0

Dimension [L*W*H]
(mm) / (in)

653*700*1300
/25.7*27.6*51.2

653*700*1300
/ 25.7*27.6*51.2

653*700*1362
/ 25.7*27.6*53.6

Weight (kg) / (lb)

130 / 287

140 / 309

190 / 419

It is normal that the current value may fluctuate in a small range
Voltage and frequency will affect the current value

Features of VJ-H Series Manual Cleaning Type Industrial Dust Collector

Horizontal filter installation mechanism can reduce the height of machine, and can be very suitable for space limited working conditions. The material of filter cartridge can be water-oil resistant, polyester or other type depending upon the customer needs.

Patented manual filter cleaning is used (Patent No. 201220489001.3), at the back side of the machine, there is a rotary handle to clean the accumulated dust on the filter. It is convenient and cost saving.

To keep the machine running safely and conveniently, the machine is equipped with a simple type magnetic switch, which has the thermal overload protection function. Also, it can achieve remote control function according to customer's requirement.

If you want to know more about industrial dust collector price, please contact us.
