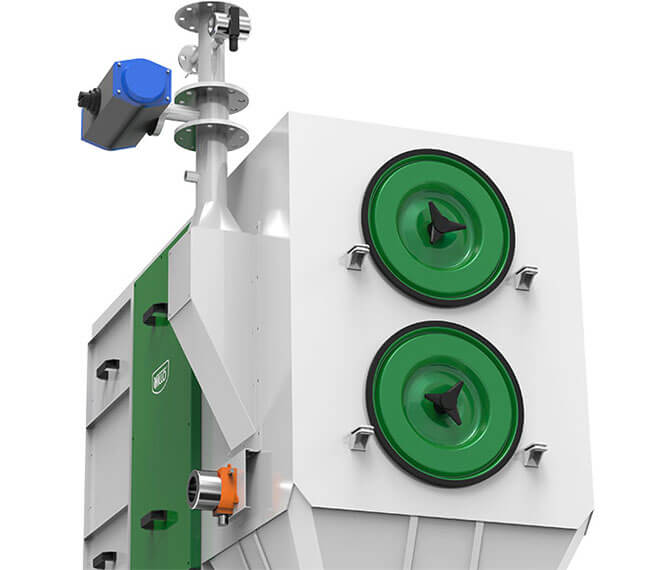

VJFCB Series – High Negative Pressure Explosion Proof Dust Collector

VJFCB Series is an explosion proof industrial vacuum dust collector with high negative pressure, pulse jet cleaning, stable and small footprint. It meets the explosion-proof requirements for the flammable and explosive dust environment.

Parameters of VJFCB Series – High Negative Pressure Explosion Proof Industrial Dust Collector

Model

VJFCB-1.5

VJFCB-2.2

VJFCB -3.0

VJFCB -4.0

VJFCB -5.5

VJFCB -7.5

VJFCB-11W

VJFCB-15W

Voltage (V/Hz)

380 / 50

Power(kW) / (HP)

1.5 / 2.0

2.2 / 3.0

3.0 / 4.0

4.0 / 5.5

5.5 / 7.5

7.5 / 10

11 / 15

15 / 20

Starting current (A)

25

30

40

60

85

100

120

150

Rated current (A)

4.3

5.6

7.2

9

12.9

16.7

28

35

Max air flow
(m³/h) / (CFM)

210 / 123

265 / 156

318 / 187

420/247

530 / 312

700 / 412

1000 / 588.6

1320 / 776.9

Filter efficiency

99%

Filter area
(m²) / (sq.ft)

11 / 118.5

22 / 237

Filter cleaning method

Pulse jet

Dia. air inlet
(mm) / (in)

Ø 50 / 2

Ø 50 / 2

Ø 50 / 2

Ø 50 / 2

Ø 75 / 3

Ø 75 / 3

Ø 100/4

Ø 100/4

Dimension[L*W*H] (mm) / (in)

750*680*1770 /
29.6*26.8*69.7

750*680*1800 /
29.6*26.8*70.9

750*680*1860 /
29.6*26.8*73.3

840*780*2010 /
33.1*30.7*79.2

970*900*1950 /
38.2*35.5*76.8

1040*900*2150 /
41.0*35.5*84.7

1980*1010*2100 /
78.0*39.8*82.7

1980*1010*2100 /
78.0*39.8*82.7

Anti-explosive level

ExdIIBT4

It is normal that the current value may fluctuate in a small range
Voltage and frequency will affect the current value

Features of VJFCB Series – High Negative Pressure Explosion Proof Dust Collector

Pulse jet cleaning method for the filter makes machine to work continuously. User can set the pulse frequency depending upon the requirements.

The filter material is polyester with PTFE coated, which can filter 99.9% dust at 0.3 microns.

Safety explosion venting membrane: to absorb the explosion wave in case of accident.

Explosion proof motor and electrical control box: guarantees the safe running of the machine. All of the electrical components are “Schneider” brand.

Applications of VJFCB Series – High Negative Pressure Explosion Proof Dust Collector

An effective solution for machining processes such as laser welding, mixing, cutting, bagging, grinding, sand blasting, plexiglass processing, vibration screen, air conveying, packaging, etc.

VILLO is a leading global provider of dust vacuum industrial control solution and explosion protection system, which helps to improve worker and equipment productivity, minimise energy use and benefit human health and the environment.
