Wall mounted clamp on doppler ultrasonic flowmeter for dirty water

Product Description

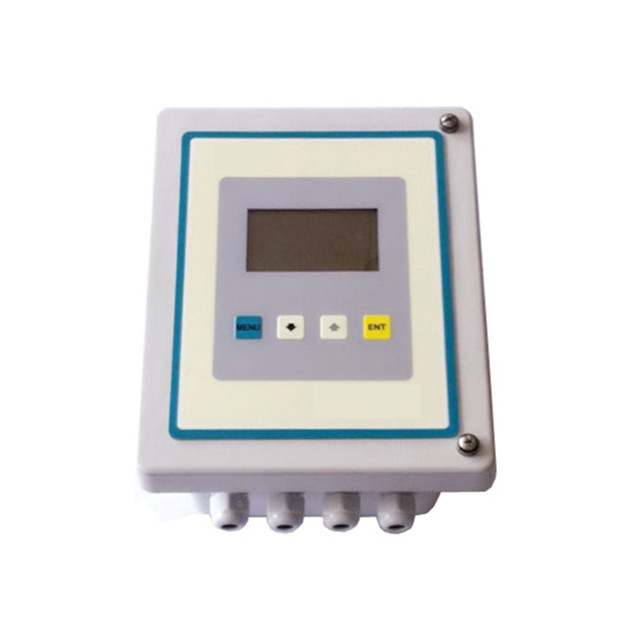

DF6100-EC Wall-mounted Doppler Ultrasonic Flowmeter (Clamp-on)
1. Lanry Doppler Clamp on Ultrasonic Flow Meter for Liquid Mud is designed to measure volumetric flow of liquid within closed conduit, the pipe line must be full of liquids, and there must be a certain amount of air bubbles or suspended solids in liquid.
2. Lanry Doppler Clamp on Ultrasonic Flow Meter for Liquid Mud can display flow rate and flow totalizer, etc., and is configured with 4-20mA, Relays,OCT outputs.
Features
--- It is suitable forpipe sizes ranging from 40 to 4000mm
--- For dirty liquids, a certain amount of air bubbles or suspended solids shall be contained
--- Excellent low flow rate measurement ability, low to 0.05m/s.
--- A wide range of flow measurement, high flow rate can reach 12m/s
--- High-temperature transducer is suitable to liquids of -35℃ ~ 200℃
--- Do not need to shut down the pipe flow when installing the transducers
--- User-friendly configuration
--- 4-20mA, Relay and OCT outputs
--- Accuracy: 2.0% Calibrated span
The specification of Transmitter
Measurement principle
Doppler ultrasonic
Resolution
0.25mm/s
Repeatability
0.2% of reading
Accuracy
0.5% -- 2.0% F.S.
Response time
2-60s for optional
Flow Velocity Range
0.05- 12 m/s
Liquid Types Supported
Liquids containing 100ppm of reflectors and at least 20% of the reflectors are larger than 100 micron.
Power Supply
AC: 85-265V DC: 24V/500mA
Enclosure type
Wall-mounted
Degree of protection
IP66 according to EN60529
Operating temperature
-20℃ to +60℃
Housing material
Fiberglass
Measurement Channels
1
Display
2 line × 8 characters LCD, 8-digit rate or 8-digit total (resettable)
Units
User Configured (English and Metric)
Rate< /div>
Rate and Velocity Display
Totalized
gallons, ft³, barrels, lbs, liters, m³,kg
Communication
4-20mA,Relay and OCT output
keypad
4pcs buttons
Size< /div>
244(h)*196(w)*114(d)mm
Weight
2.4kg
The specifications of Transducer
Transducers Type
Clamp-on
Degree of protection
IP65. IP67 or IP68 according to EN60529
Suited Liquid Temperature
Std. Temp.: -35℃~85℃ for short periods up to 120℃
High Temp.: -35℃~200℃ for short periods up to 250℃
Pipe diameter range
40-4000 mm
Transducer Size
60(h)*34(w)*32(d)mm
Material of transducer
Aluminum for standard temp.sensor and peek for high temp.sensor
Cable Length
Std: 10m
Application< /div>
Activated sludge
Ground water
Pulp and paper slurries
Chemical slurries
Drainage
Mining recirculation
It is widely used in fully filled pipe ( non-instrusive )
Factory Equipment
