Water Cooled Spindle Motor

As one of the mature CNC components manufacturers in China, HYCNC can provide various CNC router parts including spindle motors, CNC controllers, AC motor drivers, linear motion parts, servo motors and drivers. Our CNC Machines are extensively applicable in many areas of mechanical processing, such as the industrial, commercial and hobby sectors.

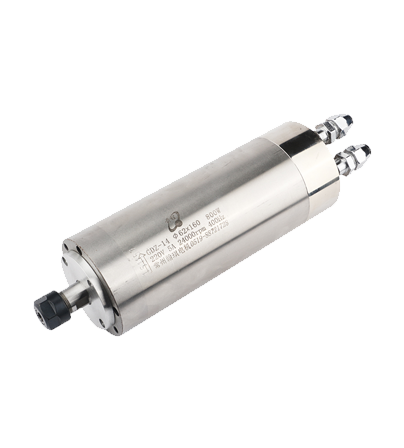

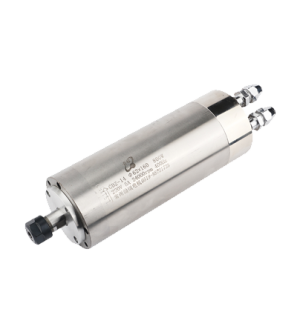

Water Cooled Spindle Motor

Water-cooled spindle motor adopts circulating cooling water to take away the heat generated by the China spindle motor, which could protect the coil, but the circulating water must keep clean and replaced frequently, so as to prolong the life of the router spindle motor.

Water-cooled spindle motor also has the characteristics of low noise and high precision, which is suitable for the processing of stone and metal molds. Furthermore, this type of CNC spindle motor also has a certain drilling and milling function, which in turn makes itself a very cost-effective product for the development of the manufacturing industry.

How To Choose The Right Water Cooled Spindle Motor For Your Industry?

How to choose a suitable spindle motor, we must first confirm what materials are processed. For wood processing, or advertising materials processing, you can choose the common carpentry spindle motor. Normally, the choice of the corresponding CNC router components depends on the size of the machine and the depth of material processing. For example, 1325 normally uses spindle 3.2 kw/3.2 kw spindle motor.

The stone engraving spindle motor needs to be waterproofed. The processing of stone requires water spray to cool the tool. Thus, the spindle motor will be splashed with water, so waterproofing for stone engraving spindle motor is very important. Due to the stone is relatively hard, so the stone engraving spindle motor generally uses high-power spindle motors, such as HYCNC's 3kw water cooled spindle and 5.5 kw water cooled spindle.

The metal engraving spindle motor requires high accuracy and water resistance, and the torque of the 3.5 kw spindle motor must be constant. Under this circumstance, the constant power or constant torque spindle motor, which is excellent at waterproof treatment, is a good choice. Constant torque spindle motor at low speed can also keep the torque constant to meet the requirements of machine tool drilling and milling.

How to Maintain the Water Cooled Spindle Motor？

1.Since the water-cooled spindle is cooled by water circulation, it is important to choose the correct cooling water. Usually, we don't use tap water, because tap water is not clean enough and easy to produce scale, so we choose to use filtered distilled water. At the same time, in order to avoid freezing due to low temperature in winter, we use automobile coolant instead of water, which is not easy to freeze and has a good cooling effect.

2. In order to ensure that the pure water is clean, a filter can be installed at the outlet of the water pump. At the same time, pay attention to the temperature of the spindle during processing. If the spindle temperature rises, it is necessary to check whether the water circulation is normal.

3. Due to the cold winter, in order to avoid damage to the water-cooled spindle, the cooling water should be treated in time after using the machine to avoid freezing the water pipe or water tank.

4. For the water cooled router spindle woodworking engraving machine, some customers often forget to replace the cooling water, especially in summer, if the water temperature is too high, the spindle will not be able to cool the spindle, and the long-term cooling will greatly reduce the service life of the spindle.

Water-Cooled VS Air-Cooled Spindle Motor

1. Cooling effect

The water cooling method uses water circulation to cool the spindle. After the water is circulated, the temperature of the spindle is guaranteed to be lower than 40 degrees, and the cooling effect will be much better than the air cooling method.

2. Noise

The water-cooled spindle motor is basically of no noise. Compared with the water-cooled, the air-cooled spindle motor is relatively noisy.

3. Service life

The service life of the water-cooled spindle motor can be extended by human factors (such as water change or the use of industrial coolers), so its service life is longer than that of the air-cooled spindle motor.

4. Operation

Since the water cooling spindle motor needs to be connected to a water pump, a bucket is needed to hold the water. And it needs to be connected to the water pipe. Especially in the cold winter in the north, water are easy to freeze, which may be more troublesome for customers in the cold winter. In this case, air-cooled spindle is more suitable.

As one of the reliable CNC spindle motor manufacturers, HYCNC provides many high quality products, if you want to buy spindle motor, contact us for a competitive CNC spindle motor price.
