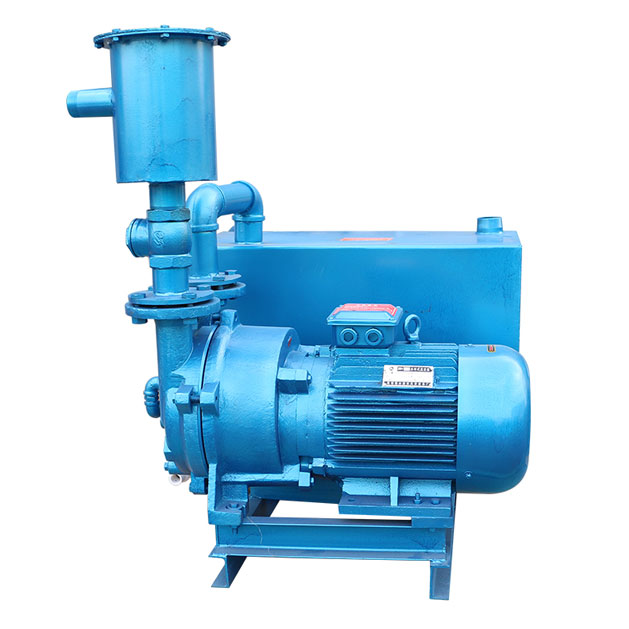

Water Cooling CNC Vacuum Pump

Product Introduction and Description of Water Cooling CNC Vacuum Pump

Applicable machine: cnc router

product composition:

Installation and operation tips of CNC router vacuum adsorion pump:

Similar to the air cooled vacuum pump, the vacuum adsorion plate or table of water cooled vacuum pump also requires the customer to groove the groove. After the groove is grooved, flange joints are installed in each area. The most common is 6 areas (which can be partitioned according to customer needs). 6 pcs flange joints are connected to the pipe. Then, connect the 6 pcs valve to the 6-way connector, and connect the wire pipe from the 6-way connector to the vacuum pump.

Tips: It is recommended to use vacuum pumps above 4kw for CNC routers. Generally, the adsorption platform of the CNC router is 5.5kw, 7.5kw, and 11kw. The smaller the power, the smaller the suction power! It is not recommended to use less than 4kw.

The influencing factors of vacuum pump suction are as follows:

1 Pipeline leakage

2 Internal pump leakage

3 Insufficient water supply

4 High water supply temperature

5 Poor exhaust discharge

6 The gap of the adsorption pump is damaged

Analyze from the above reasons. Check whether it is resolved.

The influencing factors of vacuum pump suction are as follows:

The vacuum pressure of the vacuum pump is the same. The only difference is flow. If the force is not enough, the easiest way is to enlarge the suction cup size. If the air leakage is serious during adsorption, the flow should be increased by increasing the power of the vacuum pump; if the strength is not enough, the adsorption area should be increased; if the adsorption area is large, the board is deformed, it should be multiple adsorption ports.
