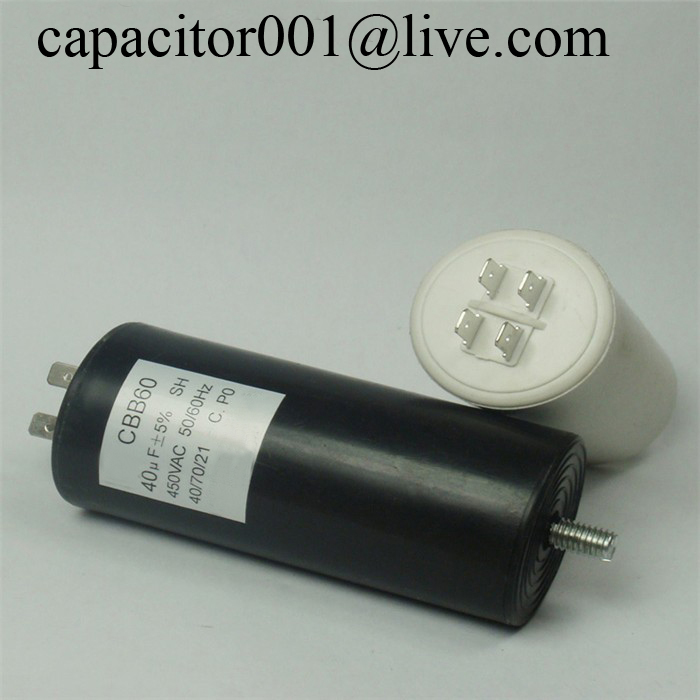

Water Proof Capacitor

Water Proof Capacitor

1. Shell: ABS, polypropylene, aluminum
2. Characteristics and Uses: The product has good stability, impact resistance ld appliances, electronic products and so on.
3. Technical parameters:
Capacity range: 3μF ~ 150μF
Capacity Deviation: ± 5%, or by customer requirements.
Rated voltage: 125V ~ 500VAC, 50/60Hz
Operating temperature range: -25 ℃ ~ +70 ℃
Dissipation factor: ≤ 0.003 (20 ℃ .50/60Hz)
Resistance between terminal voltage: AC ≥ 1.75Un 5S no breakdown
Resistance between terminal voltage and the shell: AC ≥ 2000V 10S no breakdown
Insulation resistance: between terminations Rj · C ≥ 3000MΩ.μF; shell terminal and inter-Rj ≥ 1000MΩ Department
Implementation of the standards: GB/T3667.1-2005 IEC60252-1: 2001.
