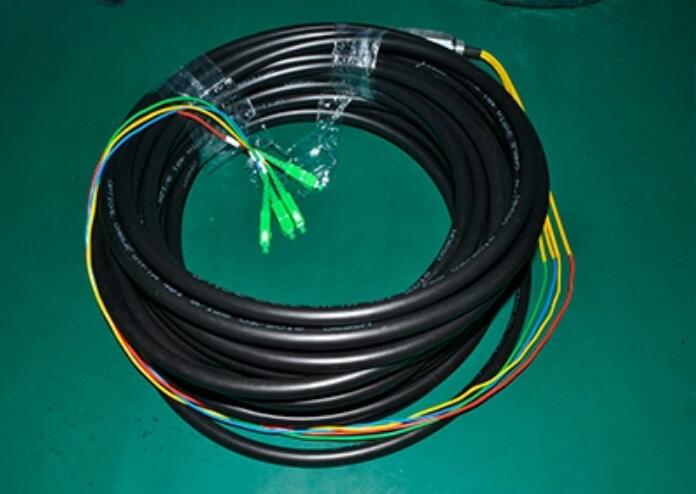

Waterproof Pre-Terminated Fiber Optical Pigtail SC LC Connectors for CATV
UnitekFiber Waterproof Pre-terminated Fiber Optical pigtail is to connect the optical node to the backbone fiber in CATV system. Its design fits Aerial, Base station, and Vault applications.The cable is with a rotational nut to avoid cables twists and enables a quick and easy installation. The fiber counts for our waterproof pigtail is from 2 to 12 fibers.
Waterproof Pre-Terminated Fiber Optical Pigtail SC LC Connectors for CATV
Application:
lFTTX + LAN.
lOptical fiber CATV.
lLocal Area Networks.
lTesting Equipment.
lFiber Optic Telecommunication.
Features:
l100% factory tested
lInsertion loss UPC Max 0.25 dB; Insertion loss APC Max 0.30 dB
lReturn loss UPC Max -55 dB; Return Loss APC Max -65 dB
lOperating temperature -40°C (-40°F) ~ 75°C (167°F)
lInstallation temperature -30°C (-22°F) ~ 60°C (140°F)
lStorage temperature -40°C (-40°F) ~ 70°C (158°F)
lPull strength short term 1335 N
lPull strength long term 400 N
lMounting thread 5/8"-24 thread UNEF
lInterferofeet test results available
Complied Standards:
Meet standards: Telcodia GR-326-CORE Issue 4, IEC 61754 series, YD/T 1272 series, etc.
As a professional fiber optic products supplier,we provide qsfp+ patch cord, qsfp+ patch cable, pre terminated outdoor fiber, pre terminated fiber lc, armored patch cord, etc. For more information, please feel free to contact us!
