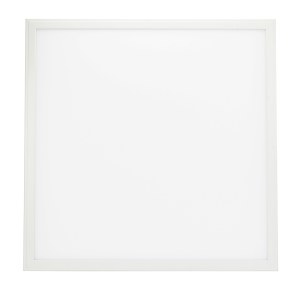

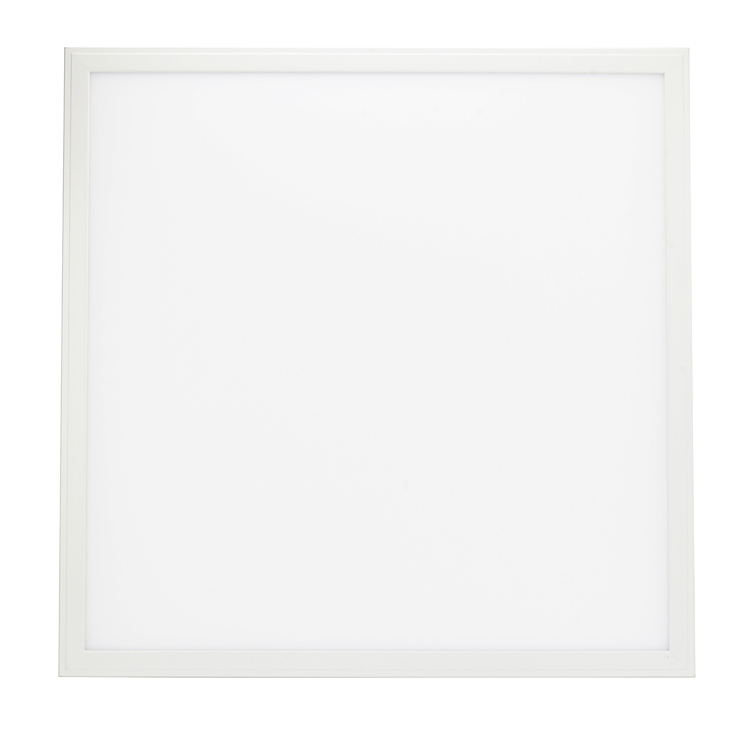

Wattage adjustable and color tunable flat panel light
Prix : 10-30USD
● Wattage adjustable & color tunable UL led panel light.
● Visual Uniformity.
● High efficiency up to 130LM/W, Premium version for optional.
● Flicker free LED drive.
Features
UL LED panel light is the latest new generation of edge-lit lighting fixture,it has the uniform and smooth lighting effect and elegant appearance design. And each fixture is 15 SKUS in 1 unit design,so the users can easily set the wattage and color temperature that they want.
1. Wattage adjustable & color tunable led flat panel light.
One piece wattage adjustable and color tunable panel light=15 pcs regular panel light now,it can save the shipping time,warehouse space and your stock cost.
2. Visual Uniformity.
Using high quality LGP with silk printing technology, the light uniformity rate is greater than 85%. No yellow edge and dark area,prefect lighting effect.
3. High efficiency up to 130LM/W, Premium version for optional.
High transmission LGP (more than 90%), high lumen LED efficacy paired with high power factor drivers.
4. Flicker free LED drive.
Constant current design,PF>0.9,THD<15%. 3 in 1 dimming mode: 0-10V,PWM,Rx Smoothly dimming 0-100%,can dim to off Short circuit,open circuit protection,and 1KV surge protection.</span>
5. Three installation options.
Each panel with standard clips for recessed and suspending installation.Optional surface mounted kit available.
Parameter
Model |
CCT |
Light efficiency |
Size(feet) |
Power |
LED type |
Voltage(V) |
CRI |
Color tunableselectable way |
2X2 105LMW panel light |
3500K-4000K-5000K |
105LM/W |
2*21*42*42*4 |
20W/25W/30W/35W/40W20W/25W/30W/35W/40W30W/35W/40W/45W/50W40W/ 45W/50W/55W/60W |
4014 |
100-277VAC |
>80 |
DIP switch |
1X4 105LMW panel light |
||||||||
2X4 105LMW panel light |
||||||||
2X4 105LMW panel light |
||||||||
2X2 130LMW panel light |
3500K-4000K-5000K |
130LM/W |
2*21*42*42*4 |
20W/25W/30W/35W/40W20W/25W/30W/35W/40W30W/35W/40W/45W/50W40W/ 45W/50W/55W/60W |
4014 |
100-277VAC |
>80 |
DIP switch |
1X4 130LMW panel light |
||||||||
2X4 130LMW panel light |
||||||||
2X4 130LMW panel light |
||||||||
2X2 130LMW panel light |
3500K-4000K-5000K |
105LM/W |
2*21*42*42*4 |
20W/25W/30W/35W/40W20W/25W/30W/35W/40W30W/35W/40W/45W/50W40W/ 45W/50W/55W/60W |
4014 |
100-277VAC |
>80 |
Wall switch(Standard0-10V dimmer) |
1X4 130LMW panel light |
||||||||
2X4 130LMW panel light |
||||||||
2X4 130LMW panel light |
||||||||
2X2 130LMW panel light |
3500K-4000K-5000K |
130LM/W |
2*21*42*42*4 |
20W/25W/30W/35W/40W20W/25W/30W/35W/40W30W/35W/40W/45W/50W40W/ 45W/50W/55W/60W |
4014 |
100-277VAC |
>80 |
Wall switch(Standard0-10Vdimmer) |
1X4 130LMW panel light |
||||||||
2X4 130LMW panel light |
||||||||
2X4 130LMW panel light |
Signcomplex is one of professional led luminaires suppliers. We provide LED Strip, Commercial Lighting, strip led lighting products, LED strips, 1x1 led flat panel, 1x1 led flat panel light and so on. Want to know more? Please contact us.
