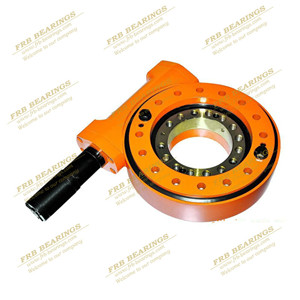

WEA25 slewing drive for solar PV tracking power station

WEA25 slewing drive for solar PV tracking power station

Model Number: WEA25
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Output Torque: 34.2 kN.m
Tilting Moment Torque: 310 kN.m
Holding Torque: 158.3 kN.m
Static Axial Rating: 1850 kN
Tracking Precision: ≤ 0.1°
Gear Ratio: 104: 1
motor: 125CC,160CC,200CC,250CC hydraulic motor
Optional Items: DC,AC Motor,Hydraulic Motor,Encoder
Delivery Time: Within 15 working days after order confirmed and payment received.

For outdoor or indoor Humid environment such as the beach, desert etc., and WEA series slewing drive is the Optimization and upgrading of the WE. With a fully sealed design can meet your field use requirements.

Feature:
1) FRB optimal design for the housing base, it is thinner, higher strength, and full sealed design, which suitable for use in the wild
2) FRB designed with full sealed which can effectively prevent corrosion of wind, sand, water on the device.

Application:
WEA series slewing drive widely used for relative rotation parts of the construction machines and solar field.
1) Solar heat, solar PV tracking power station
2) Aerial platform Chassis rotation
3) Drive the arm rotation of the crane truck
