Wedge Wire Filter Elements

Anping Tenglu Metal Wire Mesh Co.,LTD

Wedge Wire Filter Elements

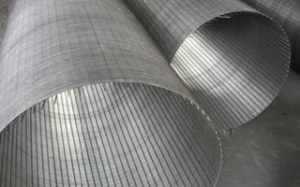

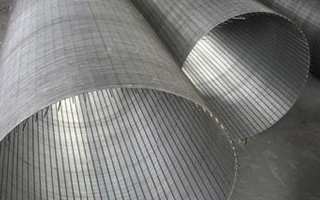

Wedge wire filter element also named wedge wire screen is made of V-shape profile wire and longitudinal support rods. Each intersecting point of these wires is fusion welded which makes it has sturdy construction and good mechanical property. The profile wire and support rod can be axial wire or radial wire. It mainly includes internal filtration, external direction filtration. According to the different usage, we can design the flow direction and shape to meet the application requirements. What is more, we can customized the wedge wire filter element such as filter tube, filter basket based on the clients requirements.

Specification:

Material: low carbon galvanized wire, mild steel wire, stainless steel wire (SS302, SS304, SS304L, SS316, SS316L, etc.)

Wedge wire

Width: 1.50mm, 1.80mm, 2.30mm, 3.00mm, 3.70mm, 3.30mm.

Height: 2.20mm, 2.50mm, 2.70mm, 3.60mm, 4.30mm 4.70mm, 5.60mm, 6.30mm, 7.00mm.

Support wire:

Support rod:

Width: 2.30mm, 3.00mm, 3.30mm, 3.70mm.

Height: 2.70, 3.60, 4.70, 5.60, 6.30.

Round wire: 2.50 - 5.0mm.

Slot opening: 0.05mm, 0.08mm, 0.10mm, 0.15mm, 0.2mm, 0.3mm, 0.6mm, etc.

Round wire diameter: 2.50 - 5.0mm.

Diameter: 20 - 1000mm.

Length: up to 6 meters.

Filter type: from outside to inside or inside to outside.

End Connection: welded rings (plain beveled ends for butt welding) or threaded male and female coupling (spiral).

Packing: in wooden cases, boxes lined with waterproof material.

Feature:

Low-carbon, galvanized or stainless steel construction.

More open area and high precise openings.

Maximum design flexibility.

More stronger and durable.

High mechanical strength.

Resist pressure, high temperature, aging, corrosion.

Easier installation and long-term operating.

Low operation cost and maintenance cost.

Easy to clean for reuse.

Application: Wedge wire filter element is widely used for deep well pump, dive water pump. Also used for waste water treatment, water softening treatment, oil industry, food process, mineral process, and chemical and alkali filtration.

Applications of wedge wire screen

Liquid / Solids Separation

Sizing, Straining and Filtering

Collection

Retention

Solids removal from process wastewater Lake and riverwater intake screens Fiber removal Screen cylinders for rotary screens Recovering solids Pulp thickening Heavy media recovery Product dewatering Sieve Bend Screen surfaces

In-line strainers to minimize the lose of media Resin Traps used as an effluent strainer Sizing of solids Pressure screens Filtering particles from treated fluid Strainers for pump or compressor protection

Support grids for uniform fluid collection in media filter Hub lateral screen systems Header lateral screen systems Collection of treated liquid in treatment vessels Filter nozzles for tube sheets Upflow Clarifiers Gravity filter underdrain systems

Retaining media and collecting the treated liquid Carbon retention screens in carbon-in-pulp tanks Flooring for germination, malt kiln, grain drying rooms Catalyst retention in catalytic reactors Fish protection / diversion screens

Localisation : Chengdong Development Zone, 053600 Anping,
Personne à contacter : liu Emily, 3125527942
