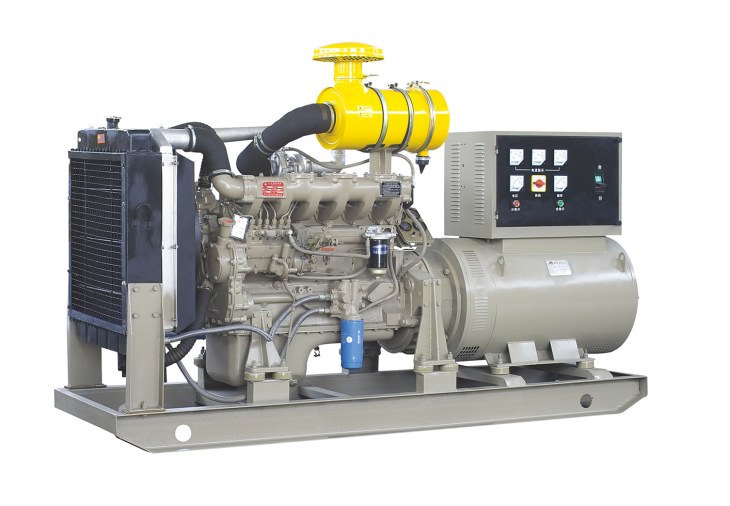

WeiChai Generating Set

Weichai Power Generating Equipment Co., Ltd of Weichai Group is domestic R&D and manufacturing base of generating sets with largest production scale, longest history, most advanced equipment and highest integrating resource. With a more than 50,000 sets annual production of various types of generating sets and power range of 10~4,300kW, the self developed and manufactured diesel engine of Weichai Group equipped with famous motor has been widely used in the national defense, telecommunications, petroleum, medical, plateau, railway, wilderness rescue, agriculture and other fields150KW Weichai series diesel generator sets technical specificationGenerator set technical parametersModel number：WEB-150Rated Voltage：400V/230VOutput（KW)：165KwRated frequency：50HzCurrent（A）：270ARated rotating speed：1500rpmRated power factor：COSΦ=0.8Starting mode：electric startingDimension：1850×700×1200（L×W×H mm）Weight：1300kgFuel grade：（standard）0#light diesel oil（normal temperature）Fuel consumption（100% load)：231g/kW·hDiesel motor technical parameters：Brand/place of origin: WeichaiCooling way：Closed Water Cycling CoolingType：BT6110ZLDDiesel motor power：165KWNumber of Cylinder：6Speed regulation method：Mechanical governing systemBore*Stroke：110×125mmAir intake mode：turbochargingCompression ratio：16：1Capacity of overload：110%Starting mode: DC12V electric startingRotate speed：1500rpmGenerator technical parameters：Generator brand：Tongji generatorProtection grade：IP22Type：STC-150Connection mode：three-phase four wire,Y type connectionRated power：150kWAdjusting mode：AVR（Automatic voltage regulator）Rated voltage：400/230Frequency：50HzInsulation：HOutput factor：COSΦ=0.8（Lagging）Voltage fluctuation rate (%)：≤±0.5Transient voltage regulation（%）：＋20～－15Steady State frequency regulation : 0~5%Transient frequency regulation: +10~-7%Voltage fluctuation rate (%)：≤0.5%Frequency fluctuation ：≤0.5%Generator set standard configurationØDirect injection internal combustion engine (diesel)；AC synchronous generator (single bearing)Suitable environment 40℃－50℃ radiator tank, belt-driven cooling fan, protection cover of fanØAir switch, standard configuration control panel；；Generator set steel common base (including: damping rubber blanket)；ØDry-type air filter, fuel filter, lubricating oil filter, starting motor, self-charging generator；ØStarting batteries and connecting cables；ØIndustrial 9dB silencer and standard component for connectionØAttached documents: Original technique documents for diesel engine and generator, generator set instruction, test report★Optional component (extra charge)：ØEngine oil, diesel oil, water-jacket , anti-condensation heaterØSplit-type fuel tank, integrated fuel tank baseØautomatic battery chargerØRain-proof model set(Bin)ØSelf-protection, self-starting control panelØsilent type model set（Bin）ØThree-remote function control panelØMobile Trailer type power station(Bin trailer)ØATSØSilent type mobile station(Bin trailer)★executive standard：International standard certification ISO9001：2000Implementation of industry standards GB/T19001-2008 url: http://www.fjtjmotor.com
