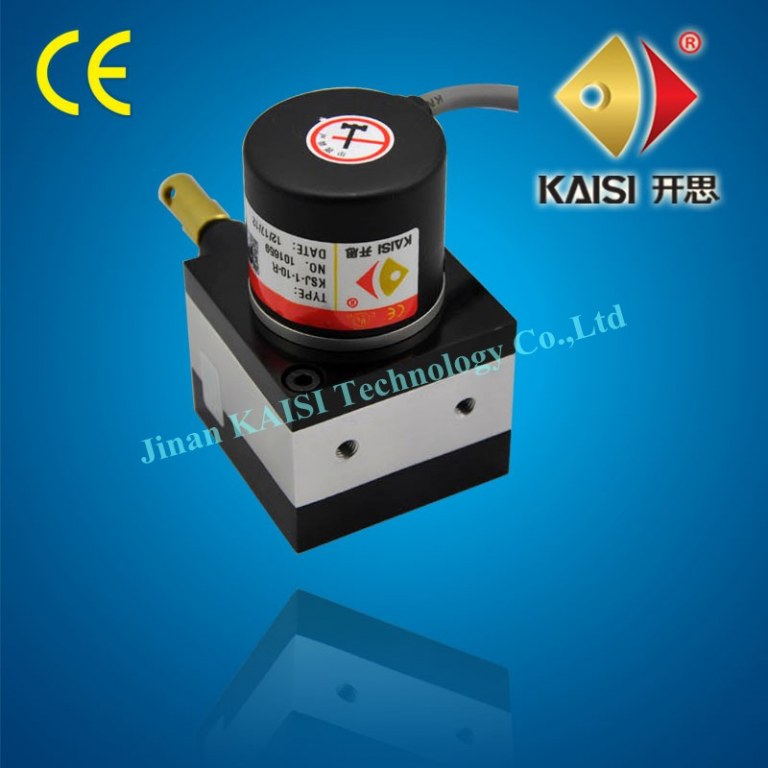

Wire displacemnt sensor/encoder, linear displacement sensor
Quantité : 10pcs Prix : 200usd/pc
Product Description
Advantage of Kaisi Product
Compact size, complete type
High test accuracy
Long-life using
Easy installation
Passed CE(Certificate of Compliance)
Good after-sale service
Technical Data
|
Series KS15 |
|
||
|
Output Type |
Digital |
Analogue |
|
|
Stroke range |
0~500mm |
0~400mm |
|
|
Resolution |
0.004 0.002 0.001 |
Infinitesimal |
|
|
Output Signal |
C(NPN/PNP) Pull-push Line Driver |
0~5kΩ 0~10kΩ 4~20mA 0~5V, 0~10V 485 232 |
|
|
Linearity |
0.05%FS |
0.5%FS~0.1%FS |
|
|
Working Voltage |
DC5V or DC5-24V |
DC10-30V or none |
|
|
Working Temperature |
-25℃~85℃ |
-45℃~125℃ |
|
|
Net Weight |
450g |
450g |
|
|
Protection Class |
IP54~IP65 |
IP54~IP65 |
|
|
Service Life |
5 Million~10 Million |
5 Million~10 Million |
|
|
Cable Length |
4M |
2M |
|
Package and Delivery
1pc per box and the carton size is 11.5cmx8.5cmx9.5cm
Delivery in 3-7 workdays after receiving payment.
Goods shipping by UPS, EMS, DHL or other express way
After-sale Service
We test goods before delivery and provide 12 months quality guarantee.
Factory Overview
Kaisi manufactures linear position transmitters with analogue and digital signal output. We supply effective stroke from 0mm to 50,000mm. Also, we accept OEM, water-proof and explosion-proof order. Our products passed CE(Certificate of Compliance) already. Any inquiry about our product and company will be highly appreciated here.
Any inquiry, please feel free to contact us. And we will reply you asap.
Cindy
mail: kaisi163at163.com
skype: kaisi163
mobile: 86-18663709720
Personne à contacter : Cindy Tao, 86 531 87989488
