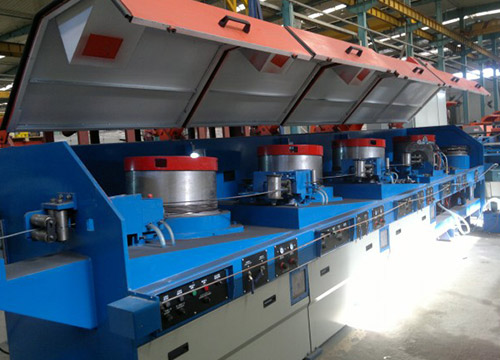

Wire Drawing Machine LZZ-4-560
Prix : 5000-50000USD
Technical Data of steel wire drawing machine LZZ-4-560TECHNICAL CHARACTERISTICS Power supply voltage380 [V] – 60 [Hz]Installed power200 [KW]AirConsumption (filtered, dried, no water, no oil)0.5 [m3/min]Oper...
|
TECHNICAL CHARACTERISTICS |
||
|
Power supply voltage |
380 [V] – 60 [Hz] |
|
|
Installed power |
200 [KW] |
|
|
Air |
Consumption (filtered, dried, no water, no oil) |
0.5 [m3/min] |
|
Operational pressure (constant) |
0.6Mpa |
|
|
Water |
Consumption (clean, filtered, no residues, no calcium, no deposits) |
30 [m3/hr] |
|
Min. pressure (constant) |
0.3Mpa |
|
|
Max. temperature at inlet |
30 [°C] |
|
|
Ambient conditions |
Temperature |
0 – 40 [°C] |
|
Altitude |
< 1000 [m.a.s.l.] |
|
|
MATERIAL CHARACTERISTICS |
||
|
Raw material type |
Hot rolled low carbon wire rod |
|
|
Coil dimension |
Inner diameter |
Min 850 [mm] |
|
Outer diameter |
Max 1250 [mm] |
|
|
Height |
2500 [mm] |
|
|
Coil weight |
Max 2,500 [Kg] |
|
|
Wire rod inlet tensile stress |
Min 440 [N/mm2] |
|
|
Wire rod inlet diameter |
5.5 – 8.0 [mm] |
|
|
FINISHED PRODUCTS CHARACTERISTICS |
||
|
Production rate |
Max 6 [m/sec] |
|
|
Finished products type |
Cold drawing wire coil |
|
|
Coil dimension |
Inner diameter |
Min 500 [mm] |
|
Outer diameter |
Max 1100 [mm] |
|
|
Height |
490 [mm] |
|
|
Coil weight |
Max 1,500 [Kg] |
|
|
Wire rod outlet tensile stress |
Min 550 [N/mm2] |
|
|
Wire rod outlet diameter |
3.5 – 6 [mm] |
|
TJK is one of professional wire mesh welding machine manufacturers. We provide bending welded wire mesh, welded wire mesh bender, wire drawing machine video, mesh bender, wire mesh bender for sale, reo bending machines and so on. Want to know about automatic stirrup bending machine price and stirrup bending machine price? Please contact us.
Personne à contacter : Lee Alex, 022 26907986
