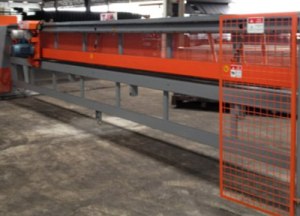

Wire Mesh Cutting Machine MC6000D
Wire Mesh Cutting Machine MC6000D has double sided usable cutting blades made of high-quality tool steel; Simple operation by means of manual switch.
Features of Wire Mesh Cutting Machine MC6000D
Cutting wire mesh machine MC6000D is workable with 6000mm mesh max wire diameter 12mm.
Double sided usable cutting blades made of high-quality tool steel.
Mesh clamping device with automatic compensation for different mesh thicknesses.
Wire Mesh Cutting Machine MC6000D has double sided usable cutting blades made of high-quality tool steel;
Simple operation by means of manual switch;
Emergency cut-out and return key;
Mesh clamping device with automatic compensation for different mesh thicknesses;
Tie-beam with semi circular rubber which prevents a displacement of the welded wire mesh during the cutting process;
Maintenance-free and long wearing cutting unit guidance;
Wire Mesh Cutting Machine MC3000D/6000D has free-wheel of the cutting unit prevents a displacement of the rods;
Feed by means of back-geared motor and toothed rack with damping system;
Adjustable rate of feeding;
Double return speed;
Wire Mesh Cutting Machine MC6000D has lateral protective side grids and mesh draw hooks;
Mesh support table;
Adjustment of cutting width by means of the potentiometer.
Technical Data of Wire Mesh Cutting Machine MC6000D
Working width |
6,000 [mm] |
Max. cutting capacity |
12 mm 50*50mm |
Max. cutting speed |
20 [m / min] |
Shear cutting unit |
cuts in one direction |
Cutting motor |
2.2 [KW] |
Geared motor feeding motor |
1.1 [KW] |
Geared press motor |
0.55 [KW] |
Voltage |
415V/50HZ |
Machine weight |
Approx.2,200 [Kg] |
Length x width x height |
7,250 x 1,650 x 1,750 [mm] |
TJK MACHINERY (TIANJIN) CO., LTD, founded in 2002, is devoted to supplying steel rebar bending machine. We sincerely invite and welcome people from all around the world to invest and create more values together.
