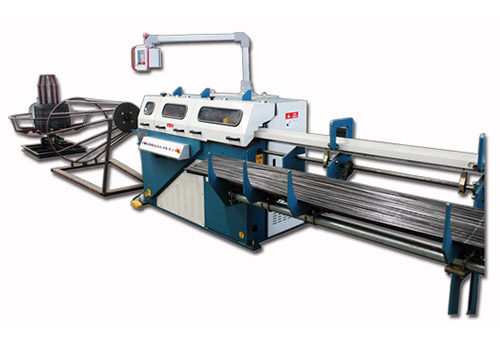

Wire Straightening and Cutting Machine GT3-7
We have wire straightening and cutting machine for sale!
Wire Straightening and Cutting Machine GT3-7(automatic wire cutter machine) fast in straightening and cutting: Our product could reach a highest straightening and cutting speed of 100m min, 3-4 times that of domestic similar products.
Features of Wire Straightening and Cutting Machine GT3-7
Servo motor cutting technology being used, timing belt drive, high accuracy positioning, no noise; workable with wire min length 800mm, stable quality, maintenance-free;
Straightening process and conveying mechanism are controlled by CNC system, straightening speed and conveying speed can be step-less adjusted, little damage on steel surface; high straightening speed and straightness, high production and safety, instant braking;
A group of workers can operate two machines which are placed in positive and negative side, overall size small, increased production efficiency;
Discharge mechanism may be quickly opened and closed, a simple structure unloading rack being used, which ensures greatest convenience hoisting of finished products;
The steel straightening process is visible, the cover is installed with tempered glass, feeding, transport and shearing process can be observed without stop;
More Detail Steel Wire Cutting Machine GT3-7
Characteristics of Wire Straightening and Cutting Machine GT3-7
Wire Straightening and Cutting Machine GT3-7(automatic wire cutter machine) fast in straightening and cutting: Our product could reach the highest straightening and cutting speed of 100m/min, 3-4 times that of domestic similar products.
Wire Straightening and Cutting Machine GT3-7(automatic wire cutter machine) Suitable for new 3rd-grade steel: The straightening performance of our products is unique, and suitable for straightening and cutting cold rolled ribbed steel bar and new 3rd-grade steel which is promoted by the government.
Wire Straightening and Cutting Machine GT3-7(automatic wire cutter machine) intelligent control: We adopt PLC to control. Operate, regulate and remote control, which is easy and reliable.
Technical Data of Wire Straightening and Cutting Machine GT3-7
Raw material |
Plain or deformed wire rod in coil (low carbon) |
Production capacity |
Φ3 – Φ7 [mm] (tensile strength≤500mpa) |
Straightening speed |
30-100 [m/min] (AC Frequency convert control) |
Cutting length |
800 – 3,000 [mm] |
Cutting method |
Servo motor control |
Length gauge |
Manual |
Linearity of straightening |
≤2 [mm/m] |
Tolerance of cut-to-length |
≤ ±1 [mm] |
Total power |
22.5 [Kw] |
Total weight |
2,000 [Kg] |
Overall dimension |
12,000mm(l) × 1,500m(w) × 1,700m(h) |
TJK MACHINERY (TIANJIN) CO., LTD, founded in 2002, is devoted to to supplying bending machine rebar. We sincerely invite and welcome people from all around the world to consult the wire straightening and cutting machine price and create more values together.
