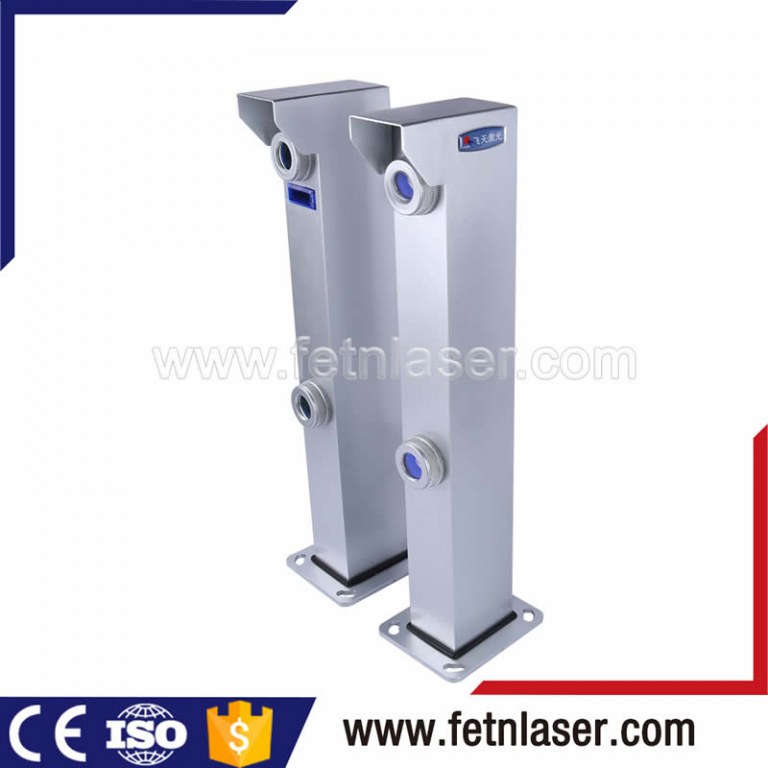

Wired alarm system outdoor laser beam detector for anti theft

Item

Technical indexes

Model

XD-B 50/100/200/300/500

Laser wave length

650nm, 808nm, 980nm

Alert distance

0- 500m

Alert level

double-layer alert

Alarm mode

Beam blocking alarm

Working voltage

DC12V±10% or AC220V

Working current:

180mA when transmitting 120mA when receiving alarm

Alarm output mode

A set of relay normally open/normally closed contact. Contact capacity: AC125V/0.5A、DC24V/2A

Anti-dismantling output pattern

A set of normal close contact. Contact capacity: AC125V/0.5A、DC24V/2A

Angles at the transmitting and receiving ends

Divergence angle: <3′ Receiving angle: ＞10° </p>

Optical axis adjustment angle

Horizontal 30° Vertical ±30° (range adjustable.)

Product dimension

60mm (L) × 80mm (W) × 490mm (H)

Chassis dimension

110mm (L) × 130mm (W) × 6mm (H)

Material

Aluminum alloy

Product weight

4.48KG (transmitting end: 2.36KG, receiving end: 2.12KG）

Dimension of installation hole

4 diameter 10 holes in even distribution

Alarm time

2s±1s (1-30s optional)

Response time

5ms-500ms (adjustable)

Working environment temperature

-40℃-70℃

Protection level

IP67

Type of laser light source

Type I safety laser light source, in Class I

MTBF

> 120,000h
