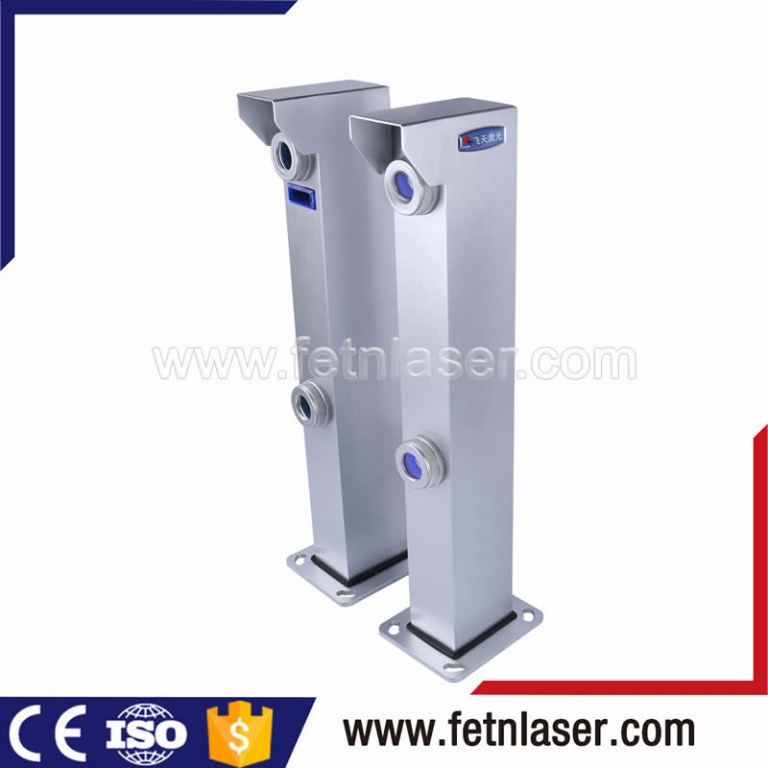

Wired outdoor 100m dual Beam Photoelectric Laser Beam Detector Tamper Alarm Output
Quantité : 1000
Function instruction: XD-B series laser intrusion detector adopts double-layer bijection structure, with double beam as t he alert line, and a pair of detectors as the alert unit, and is capable of continuous laying out an d linking other equipment such as lighting device, alarming device, camera, etc. through alarm host.
|
Item |
Technical indexes |
|
Model |
XD-B 50/100/200/300/500 |
|
Laser wave length |
650nm, 808nm, 980nm |
|
Alert distance |
0- 500m |
|
Alert level |
double-layer alert |
|
Alarm mode |
Beam blocking alarm |
|
Working voltage |
DC12V±10% or AC220V |
|
Working current: |
180mA when transmitting 120mA when receiving alarm |
|
Alarm output mode |
A set of relay normally open/normally closed contact. Contact capacity: AC125V/0.5A、DC24V/2A |
|
Anti-dismantling output pattern |
A set of normal close contact. Contact capacity: AC125V/0.5A、DC24V/2A |
|
Angles at the transmitting and receiving ends |
Divergence angle: <3′ Receiving angle: ＞10° </p> |
|
Optical axis adjustment angle |
Horizontal 30° Vertical ±30° (range adjustable.) |
|
Product dimension |
60mm (L) × 80mm (W) × 490mm (H) |
|
Chassis dimension |
110mm (L) × 130mm (W) × 6mm (H) |
|
Material |
Aluminum alloy |
|
Product weight |
4.48KG (transmitting end: 2.36KG, receiving end: 2.12KG） |
|
Dimension of installation hole |
4 diameter 10 holes in even distribution |
|
Alarm time |
2s±1s (1-30s optional) |
|
Response time |
5ms-500ms (adjustable) |
|
Working environment temperature |
-40℃-70℃ |
|
Protection level |
IP67 |
|
Type of laser light source |
Type I safety laser light source, in Class I |
|
MTBF |
> 120,000h |
