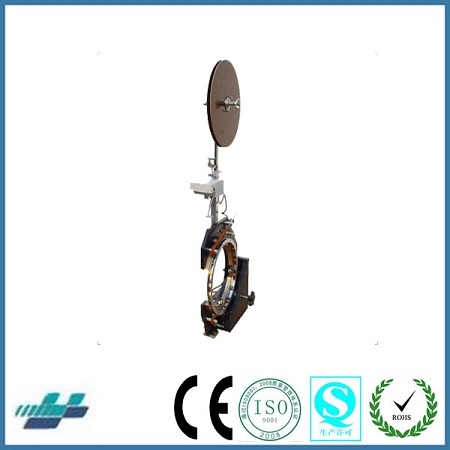

WISDOM Fully Automatic Toroidal Taping Machine TT-H09A
Quantité : 1 set Prix : USD 4000.00
Accurately and reliability digital automatic toroid-taping machine, it is used for wraping the insulation tape on the toroidal core and windings. Toroidal-taping machine is best suited to toroidal inductor, toroidal transformer, toroidal current transformer, toroidal coil, toroid choke coil, power inductors, power magnetics, UPS inductor with thick wire, converter inductors etc
Name: Toroidal Coil Taping Machine
Application: designed for taping insulation belt of the toroidal coil
Material of the tape: Mylar
Tape width:10mm-25mm
Max OD of coil : 200mm
Min ID of coil: 20 mm
Max toating speed of tape: 0-800r/min
ID of tape roll: 55mm
OD of tape roll: 180-230mm
Host power : 220V,50Hz
Weight: 100Kg
Dimensions: 500mm*610mm*1100mm
Personne à contacter : Marisa Ma, 86 21 61395047
