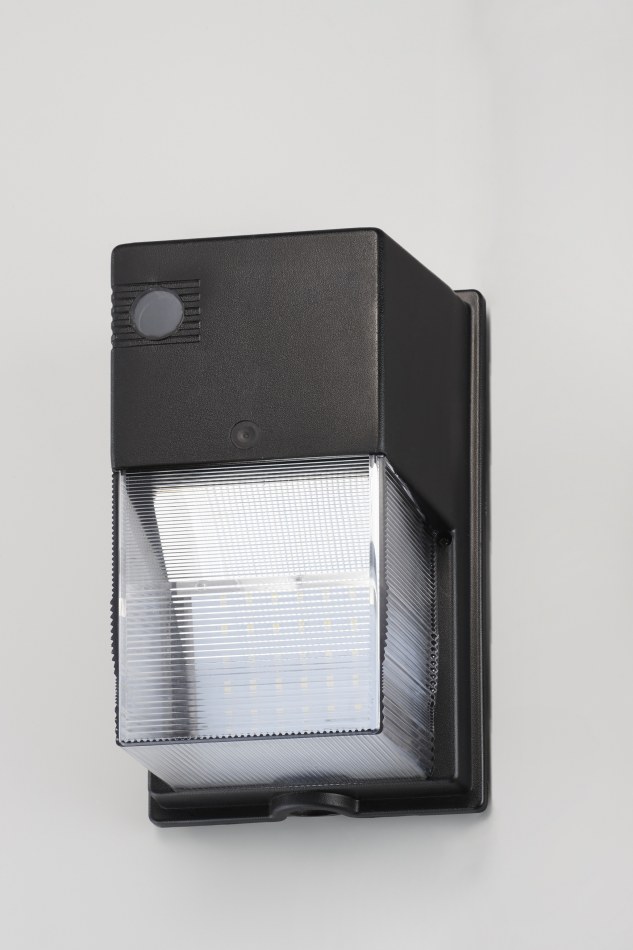

WPL-1 Series LED Wallpack Light

WPL-1 Series LED Wallpack Light

Light Source: CREE/Lumileds/Bridgelux/Osram/Samsung/Epistar

LED Driver: Meanwell/Philips/MOSO/Sosen/Lifud/Inventronics

Power range: 15W/25W/

Voltage: AC120-277V/AC200-480V

Size: 12.7"x 7.6"x 5.5"

Weight: 1.2KG/1.4KG

CCT: 3000K/4000K/5000K/6000K

Optical : Type IV

Efficacy: 110lm/W standard, 135lm/W optional

CRI: Ra>80

IP Rating: IP65

IK Rating: IK09

Installation: Wall mounted

Temperature: -20℃ to +55℃

Warranty: 5Years

Smart control: Photo sensor, motion sensor, Emergency battery

The WPL-1 Series LED wall pack lights combine high efficacy LEDs, precision engineered optics in a rugged construction, offering a robust wall-mounted LED lighting solution with an exceptionally high ROI and years of dependable service. These durable, energy efficient wet location fixtures are perfect for lighting outdoor walkways, building entrances, perimeter parking areas, and loading docks.The streamlined round housing of the WPL-1 Series LED wall pack light makes it highly efficient in protecting against the accumulation of dirt and dust, while blending smoothly with exterior design to complement both new and existing architecture.

The WPL-1 Series LED wall pack lights is available in two wattage options, ranging from 15 watts to 25 watts, with lumen output from 1600 lm to 2600 lm. To accommodate different vertical lighting requirements it has several IES type lenses to customize distributions as per application requirements for maximum optical efficiency.

The TIR designed PC optical lenses optically aligned over each LED deliver superior uniformity and optimized light levels to the targeted application. These high-strength, heat and impact resistant polycarbonate lenses guard the light engine against UV damage and environmental contamination. By utilizing high efficacy CREE/LUXEON LEDs, combined with high efficiency drivers operating at the rated current ranging between 530mA and 700mA, the luminaire achieves a system level efficacy of 135 LPW max.

The durable LED wall pack consists of a die cast aluminum housing polyester TGIC powder-coated in a grey, bronze, black or white finish. The thermally efficient housing provides maximum thermal dissipation to the exterior of the luminaire to ensure an impressive 90% lumen maintenance after 60,000 hours. The sealed luminaire provides an IP65 ingress protection rating which is perfect for use across a broad range of outdoor conditions.

Specifications:

Model No. YB-WPL-1-15W YB-WPL-1-25W
Nominal Power(W) 15W 25W
Flux(lm): >1600lm >2600lm
Efficcacy(lm/W) >109lm/w >110lm/w
Power Factor (PF) >0.95 >0.95
CRI 80
Color temperature 5000K
Power Factor (PF) >0.95 >0.95
Input Voltage AC100-277V (50/60 Hz), AC200-480V
THD < 20% at full load
Dimension 12.7″x 7.6″x 5.5″ 12.7″x 7.6″x 5.5″
N.W. 1.2kg 1.4kg
G.W. 1.4kg 1.6kg
Warranty 5 years 5 years
Localisation : Creative Port. Zhongshan City, 523487 Creative Port. Zhongshan City,
Personne à contacter : Matt Zhao, +8613631786201
