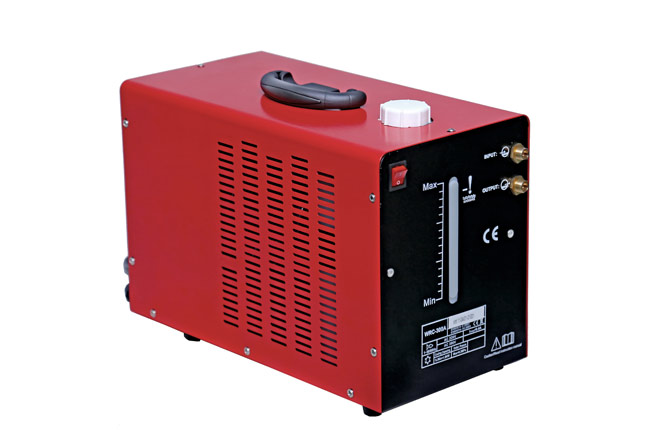

WRC-300 10L Tig Welder Cooler
Quantité : 1000sets/ Prix : $90-$10000
Wrc 300 10L TIG welder cooler is a circulating cooling equipment with water tank capacity of 10L and maximum head of water pump of 30m. It is mainly used for cooling argon arc welding equipment. The working principle of wrc 300a is that the water in the high-temperature water tank is pressurized and circulated to the equipment to be cooled by the high lift centrifugal pump. The water with higher discharge temperature is dissipated by three rows of copper row high-quality radiators. After cooling by high-speed fan, it returns to the water tank and re enters the circulation system, so as to achieve the purpose of cooling the welding machine.
Advantage Of WRC300 10l Tig Welder Cooler
Economical water tank, small size, light weight, easy to move.
Built-in high-grade stainless steel centrifugal pump, high-quality heat-resistant motor, long life and durability.
Quick-plug connector, easy to install, waterproof and leak-proof.
Specification Of WRC-300 10l Tig Welder Cooler
Main voltage |
220V |
380V |
Frequency |
50Hz/60Hz |
|
Current |
1.18A |
0.68A |
Phase number |
1 phase |
|
Heat dissipating power |
2.9KW |
|
Pump power |
0.26kw |
|
Max.pressure |
0.3Mpa |
|
Tank capacity |
10L |
|
Working temperature |
-20℃-60℃ |
|
Net Weight |
12kgs |
|
Gross Weight |
14kgs |
|
Product dimension(mm) |
450*250*320(L*W*H) |
|
Packing dimension(mm) |
550*280*370(L*W*H) |
Application Of WRC-300 10l Tig Welder Cooler
AC and DC argon arc welding equipment, gas shielded welding equipment, plasma power supply equipment, resistance welding machine, laser cutting machine, etc.
As one of the leading process chillers manufacturers, Xlntchillers provides welding water cooler, industrial chiller cw 5200, etc. Contact us to buy welding water chiller or know more.
