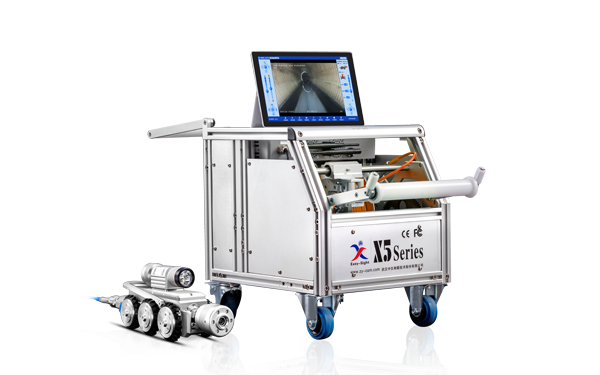

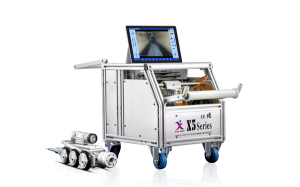

X5-HMA CCTV Inspection Crawler
X5-HMA pipe crawler robot is a high-definition pipe inspection robot, which can be controlled by a personal notebook computer or a dedicated controller. A laptop computer or a dedicated controller is connected to other parts of the system through a wireless (wired) method, and displays and stores high-definition detection videos in real time.
X5-HMA CCTV Inspection Crawler Main Parts
X5-HMA Crawler
Suitable for pipe DN150-300
6-wheel-drive IP68 up to 10m water depth
Include pressure sensor, inclination sensor, roll and pitch sensor
Power supply: cable reel Motor: 2x25W DC
Speed: Max 15m/min Inclination: Max 45°
Working ambient temperature: -10℃~50℃
Material: Brass nickel-plating stainless steel
Compatible with X5-H series camera
Dimension( LxWxH): 385x120x102.5mm
Weight: about 11.5 kg
Cable Reel
Cable length: 150m
Motor-driven
4-pin cable, drawing anti-Kevlar 300 kg, imported polyurethane sheath, cable diameter <6mm, waterproof, wear, acid, corrosion.</span>
Cable retracting automatically or manually
Accurate cable counter, devition within 1mm
Compatible with Easy-Sight X5-H series crawlers and X4 sonar inspection system
Protection class: IP63
Dimension( LxWxH): 570x395x475mm
Weight: about 45 kg( with 150m cable)
Main Controller
Regular computer or tablet can be used at main controller with build-in inspection collection software. Both main controller and joystick can control the crawler forward, back and turn, camera rotating, light and so on.
HD Axial Camera
Working ambient temperature: -10℃~50℃
Light source: 6x 3W LED light
Lens: color 1/3”, 2592*1520, CMOS, viewing angle 6.7°-68°,sensitive 0.1 lux, auto-focusing
Dimension( LxWxH): 100x75x75mm
Weight: about 0.6kg
If you want to know more about smart drainage system, please visit our website.
