X5-HW Pipeline CCTV Inspection Robot
Quantité : 30set/Mont Prix : 1000USD-40000USD
X5-HW pipeline CCTV inspection robot adapts to the pipe diameter range of 800mm-4000mm, and the detection distance can reach 2000 meters. It is a product designed for large long-distance drainage pipelines. Its most notable feature is the long single detection distance, which solves the problem that traditional pipeline inspection robots cannot detect long-distance pipelines.
X5-HW Pipeline CCTV Inspection Robot Main Parts
Crawler
Suitable for pipe DN800-4000
IP68 up to 10m water depth
Powerful eight-wheel drive (steerable)
Automatic removable elevator
Include pressure sensor, inclination sensor, roll and pitch sensor
Integrated rear-view camera
Electrical adjustable clutch Power supply: cable reel
Speed: Max 12m/min Inclination: Max 15°
Light source: forward light 6X10W LED; backward 2X10W LED
Material: Brass nickel-plating stainless steel
Minimum dimension( LxWxH): 780x580x490mm,
Maximum dimension( LxWxH): 1400x860x2355mm
Minimum weight: 180KG Maximum weight: 300KG

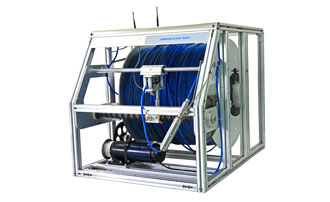

Cable Reel
2050m cable, diameter 8.5mm, 96.28g/m
Accurate meter counter: ±0.01m
Multi-pin cable, strong 500kg Kevlar reinforced
Automatic rewinding, maximum speed: 30m/min
Protection Class: IP63
Dimension: 1050X830X830mm
Weight: 300KG
HD P&T Camera
IP68 up to 10m water depth
Working ambient temperature: -10℃~50℃
Light source: 4x 3W LED light
The radial rotation 360°,horizontal rotation ±135°,one click to reset
10X optical, 12X digital
Laser measurement for crack
Lens: color 1/3”, 2592*1520, CMOS, viewing angle 6.7°-68°,sensitive 0.1 lux, auto-focusing
Dimension( LxWxH): 155x95x90mm
Weight: about 1.5kg
We provide video inspection crawler,sewer inspection crawler,pipe crawler camera,sewer pipe inspection crawler camera,sewer crawler camera and pipe inspection robot,RFQ today.
