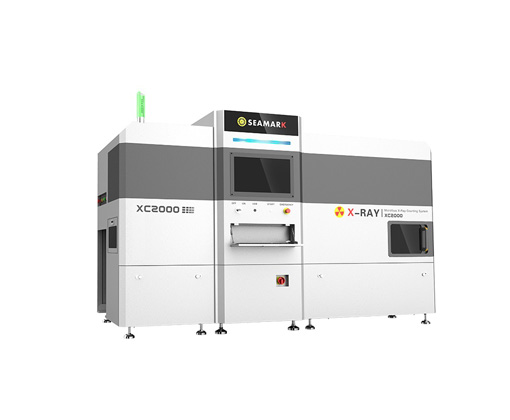

XC2000 Inline Component Counting Equipment
Quantité : 500 Sets/M Prix : $1000-200000
XC2000 is an inline automatic counting machine. It uses the X-Ray perspective principle and the independently developed algorithm software with AI function, which can quickly and accurately calculate the number of materials in the reel, it can also upload MES data and automatically print the material labels.
This X-Ray SMD component counter machine online has the functions of automatic code scanning, labeling, and automatic sorting failure, and can automatically load and unload materials to improve work efficiency and save labor.
Product Features
With automatic loading/unloading function.
Compared with traditional counting/pointing machine, there is no need to unpack or transfer the reel.
Suitable for all types of chip components, SMD X-Ray counter above 01005.
Accuracy of counting reaches more than 99.99%.
Measurable reel diameter is 7-15 inches.
Innovative detection environment and algorithm with AI function.
With automatic sorting of defective products.
With automatic printing and attaching material labels.
Can realize the function of database storage and MES data upload.
Specification Of XC2000 Online Reel Counter
|
X-Ray Tube Source Specification |
|
|
Type |
Sealed Micro-Focus X-Ray Tube |
|
Voltage |
80 KV |
|
Operating Voltage Range |
30-80KV |
|
Operating Current Range |
200 -700μA |
|
Max Output Power |
56W |
|
Micro Focus Spot Size |
30μm-40μm |
|
Flat Panel Detector Specification |
|
|
Type |
TFT Industrial Dynamic FPD |
|
Pixel Matrix |
3072×3072 |
|
Field of View |
427mm×427mm |
|
Resolution |
3.6Lp/mm |
|
Frame(1×1) |
6fps |
|
A/D Conversion Bit |
16bits |
|
Dimensions |
L3200mm×W1600mm×H2100mm |
|
Input Power |
220V 10A 50-60HZ |
|
Max Sample Size |
510mm×650mm |
|
Control System |
Industrial PC WIN7/ WIN10 64bits |
|
Net Weight |
Approx 2200KG |
|
Radiation |
<1μSv/h |
For more information about china inline x ray machine and china inline x ray machine, please feel free to contact us!
