XCTF-8200A-C13 Smart Interface Card
Prix : 0.1~1000usd
XCTF-8200A-C13 Smart Interface Card

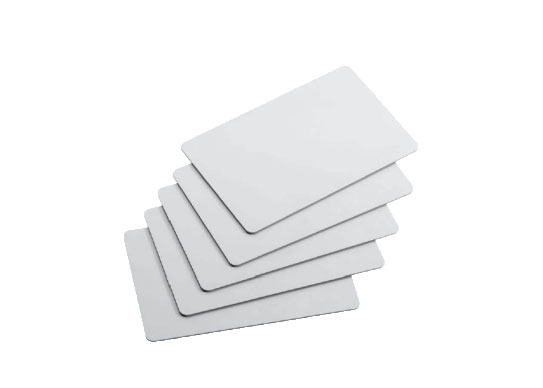

The Invengo XCTF-8200A-C13 UHF card is a passive UHF(RAlN RFID) smart card designed for superior read/write performance. The smart UHF card is EPCglobal Class 1 Gen 2 V2 and lS0 18000-63 compliant, combining Invengo's advanced antenna design and Impinj Monza 5 chip. Invengo's smartcard operates worldwide within any RAlN RFID(UHF) band and offers an exceptional long reading range up to 9 meters or 30 feet.
Main Features of XCTF-8200A-C13 UHF Card
High performance transponder for a wide range of applications
Operating Frequency 840 to 960 Mhz
Superior read/write sensitivity
100% performance tested
SPECIFICATIONS OF XCTF-8200A-C13 UHF CARD
|
RFID |
Protocols Supported |
EPCglobal Class 1 Gen 2,ISO 18000-63 |
|
Integrated Circuit (Ic) |
lmpinj Monza 5 |
|
|
operating Frequency |
840 to 960 MHz |
|
|
EPC Size |
128 bits |
|
|
TlD |
48 bits serialized TID |
|
|
Environmental |
0perating Temperature |
-40C to 85C (-40F to 185F) |
|
Shelf Life |
Minimum 2 years from date of manufacturing in 20℃ (68F)@50% RH |
|
|
Bending Diameter |
>50 mm, tension max 10 N |
|
|
Static Pressure |
<10MPa (1ON/mm2)</span> |
|
|
ESD |
±2000V peak |
|
|
Dimensions |
Size |
86 x54 x0,9 mm(3.39 ×2.13 x 0.04 in) |
|
weight |
6 gram |
|
|
Material |
PVC |
|
|
Order Information |
smart card |
XCTF-820OA-C13200 pcs/box |
Now the price of smart card for sale is reasonable, if you have needs, please contact us.
As one of rfid software companies, we will do our best to meet all the needs of customers.
Personne à contacter : com Invengo, 0755 26711633
