XCTF-8200A-C17 UHF Card
Prix : 0.1~1000usd

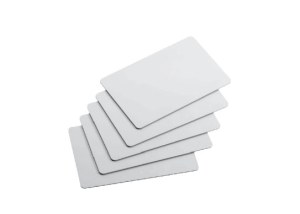

XCTF-8200A-C17 UHF Cards
Invengo XCTF-8200A-C17 is a passive RAIN RFID tag card that have a excellent performance on reading and writing. It compatible with EPCglobal Class 1 Gen 2 V2 and IS0 18000-63. The smart card combines Invengo's advanced antenna design with Impinj Monza R6 chip. The smart cards can be used in all RAIN RFID bands in the world.
Main Features of XCTF-8200A-C17
High performance transponder fora wide range of applications
Operating Frequency 840 to 960 Mhz
State-of-the-Art Monza R6 chip
Superior read/write sensitivity
100% performance tested
SPECIFICATIONS OF XCTF-8200A-C17
|
RFID |
Protocols Supported |
EPCglobal Class 1 Gen 2,ISO 18000-63 |
|
Integrated Circuit (Ic) |
lmpinj Monza R6 |
|
|
operating Frequency |
840 to 960 MHz |
|
|
EPC Size |
96 bits |
|
|
TlD |
48 bits serialized TID |
|
|
Environmental |
Operating Temperature |
-40℃ to 85℃ (-40F to 185F) |
|
Shelf Life |
Minimum 2 years from date of manufacturing in 20℃ (68F)@50% RH |
|
|
Bending Diameter |
>50 mm, tension max 10 N |
|
|
Static Pressure |
<10MPa (10N/mm2)</span> |
|
|
ESD |
±2000V peak |
|
|
Dimensions |
Size |
86 x54 x0.9 mm(3.39X2.13x0.04 in) |
|
weight |
6 gram |
|
|
Material |
PVC |
|
|
Order Information |
smart card |
XCTF-8200A-C17200 pcs/box |
Now the price of ultra high frequency rfid tags is reasonable, if you have needs, please contact us.
If you want to know more about uhf card frequency and ultra high frequency rfid range, please visit our website.
As a rfid reader supplier, we can provide sorts of rfid writer reader for sale, anything you need, please leave us a message.
