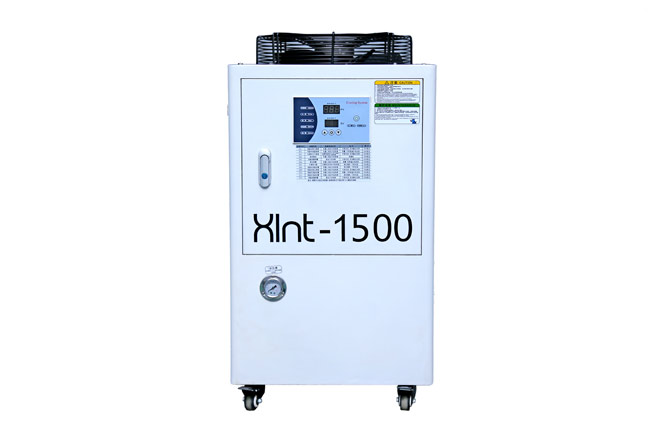

XLNT-1500 1500W Fiber Laser Water Chiller
XLNT-1500 1500W fiber water cooler is specially developed and produced to meet the cooling requirements of the 1500W fiber laser machine. XLNT-1500 fiber water chiller provides users with two intelligent temperature control modes: intelligent temperature control and constant temperature control, which intelligently meets the needs of different users in different environments.
Advantage Of XLNT-1500 1500W Fiber Laser Water Chiller
Dual temperature control, the low-temperature area cools the laser, and the normal temperature area is used to stabilize the temperature of the optical head lens.
The cooling capacity is 5600W.
The industrial water cooled chillers are equipped with high, low temperature and intelligent anti-icing protection functions.
Double water filter protection: equipped with pure water filter and deionized filter, the equipment operation is safer.
Specification Of XLNT-1500 1500W Fiber Laser Water Chiller
|
Voltage |
220v |
|
|
Frequency |
50hz |
60hz |
|
Current |
4A-15A |
|
|
Compressor power |
1.68KW |
1.645KW |
|
2.28HP |
2.24HP |
|
|
Cooling capacity |
16510Btu/h |
16640Btu/h |
|
4.65kw |
4.7kw |
|
|
4780kcal/h |
4880kcal/h |
|
|
Electric assisted power |
400w+1000W |
|
|
Refrigerant |
R-22/R410A |
|
|
Precision |
±0.5℃ |
|
|
Reducer |
Capillary |
|
|
Protection |
Over-current protection for compressor, flow alarm, over-temperature alarm |
|
|
Pump power |
0.75kw |
|
|
Tank capacity |
15L |
|
|
Inlet and outlet |
Rp1/2'' + Rp1/2'' |
|
|
Max.lift |
45M |
|
|
Max.flow |
70L/MIN |
|
|
N.W |
86KGS |
|
|
G.W |
96KGS |
|
|
Product dimension |
78*47*89CM(L*W*H) |
|
|
Packing dimension |
87*60*109CM(L*W*H) |
|
Application Of XLNT-1500 1500W Fiber Laser Water Professional Chiller
This chiller for laser machine is suitable for 1000W~1500W fiber laser equipment.
More Details Of XLNT-1500 1500W Fiber Laser Water Chiller
