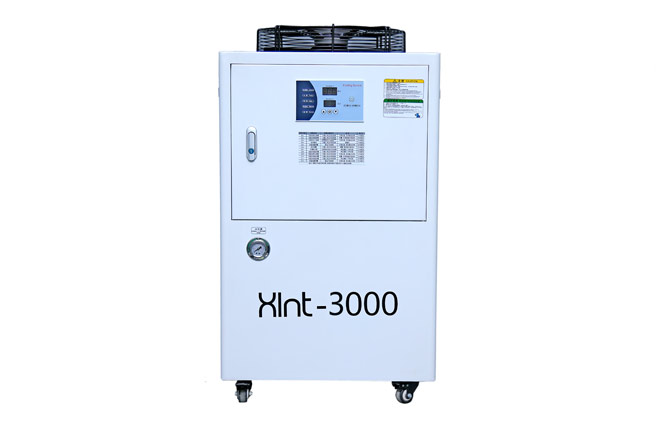

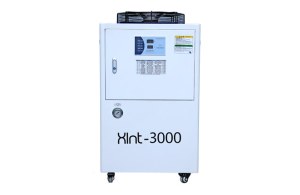

XLNT-3000 3000W Fiber Laser Cutter Chiller
Quantité : 1000sets/ Prix : $90-$10000
XLNT-3000 3000W Fiber laser cutter chiller is suitable for 3000W fiber laser cutter. XLNT-3000 adopts intelligent dual-temperature dual-control mode, which can cool the fiber laser generator and QBH connector at the same time. It has an ultra-high temperature control accuracy of ±0.3°C. It is also equipped with professional water filtration and purification equipment, which truly realizes a machine with multiple uses, environmental protection and energy-saving.
Advantage Of XLNT-3000 3000W Fiber Laser Cutter Chiller
The cooling capacity is 8500W.
It is equipped with protection functions such as flow alarm, high-temperature water alarm and low-temperature water alarm.
The industrial water cooled chillers are equipped with a deionizing filter to ensure the cleanliness of the laser cooling water circuit.
There are multiple fault detections inside to protect the laser in a normal state, and a signal output port is also equipped.
Specification Of XLNT-3000 3000W Fiber Laser Cutter Chiller
Voltage |
220v |
|
Frequency |
50hz |
60hz |
Current |
4A-17.3A |
|
Compressor power |
2.34KW |
2.3KW |
3.1HP |
3.1HP |
|
Cooling capacity |
24566Btu/h |
23884Btu/h |
8.5kw |
8.0kw |
|
6192kcal/h |
6020kcal/h |
|
Electric assisted power |
400W+1800W |
|
Refrigerant |
R-22/R410A |
|
Precision |
±0.5℃ |
|
Reducer |
Capillary |
|
Protection |
Over-current protection for compressor, flow alarm, over-temperature alarm |
|
Pump power |
0.75kw |
|
Tank capacity |
40L |
|
Inlet and outlet |
Rp1/2'' + Rp1'' |
|
Max.lift |
53M |
|
Max.flow |
70L/MIN |
|
N.W |
95KGS |
|
G.W |
113KGS |
|
Product dimension |
78*47*89CM(L*W*H) |
|
Packing dimension |
87*60*109CM(L*W*H) |
Application Of XLNT-3000 3000W Fiber Laser Cutter Chiller
This chiller for laser machine is suitable for 2000W~3000W fiber laser equipment.
More Details Of XLNT-3000 3000W Fiber Laser Cutter Chiller
On-top Cooling Fan, Ultra-quiet
The Side Panel Wind Tunnel Design, Detachable, Helps Heat Dissipation In All Directions
Equipped With High And Low Temperature Dual Protection
As a leading water chiller system supplier, Xlntchillers provides industrial chiller cw 5200, laser cutter cooling system, laser cooling system, etc. Contact us to buy welding water chiller or know more.
