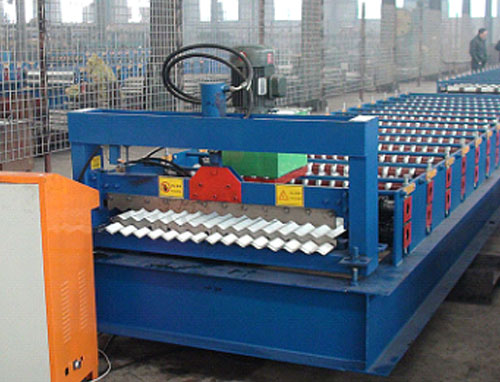

XN13-65.4-850 corrugated roof panel roll forming machine

Hebei Xinnuo 15-55-825 roof plate forming machine, the feeding width is 1000mm, the production can be used for the roof and wall. Color steel sheet forming machine, characteristics and Uses: Xinnuo color steel tile roll forming equipment, both the solemn elegant, new and beautiful, and smo oth appearance, uniform corrugated, utilization rate is high, the strength is strong, the production high degree of automation, low cost, very durable.

XN13-65.4-850 corrugated roof panel roll forming machine

Units including: manual decoiler, main machine for roll forming, post cut, hydraulic system, PLC control, stacking</ p>

1.control system: automatic PLC frequency control, text screen

2.roller steps: 9 rows

3.main power: 3kw

4.pump power: 3kw

5.Diameter of roller: Φ72mm

6.max speed: 12m/min

7.feeding width: 1000mm

8.the effective width: 850mm,tolerance ±1/100

9.thickness of the plate: 0.35-0.6mm

10.the dimension of main roll former: 5000mm×1300mm×1450mm

11.roller material: 45#steel,CNC-machined ,heat treatment, buffing, surface for electroplating chromium 0.05mm
