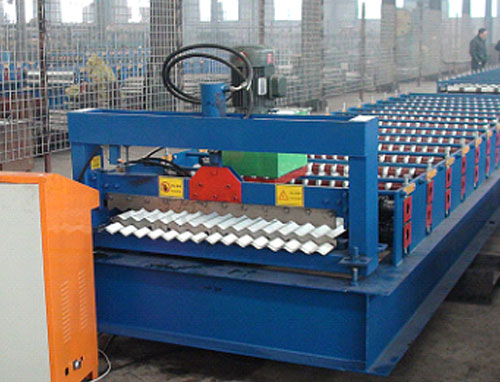

XN24-210-840 roll forming machine roof plate

Hebei Xinnuo 24-210-840 roof panel forming machine, the feeding width is 1000mm, adop ting roll forming method, can produce beautiful appearance, strong panels which are extensively used in roof construction or outdoor decoration. It is solemn elegant, new and beautiful, and smooth app earance, uniform corrugated, utilization rate is high, the strength is strong, the production high d egree of automation, low cost, very durable.

XN24-210-840 automatic frequency control roll forming machine

Units including: manual decoiler ,main machine for roll forming ,post cut, hydraulic system ,PLC control, stacking</ p>

1.control system : automatic PLC frequency control, text screen

2.roller steps: 11 rows

3.main power: 4kw

4.pump power: 4kw

5.Diameter of roller: Φ72mm

6.max speed: 12m/min

7.feeding width: 1000mm

8.the effective width: 840mm,tolerance ±1/100

9.thickness of the plate: 0.35-0.6mm

10.the dimension of main roll former: 6000mm×1300mm×1450mm

11.roller material: 45#steel,CNC-machined ,heat treatment, buffing ,surface for electroplating chromium 0.05mm
