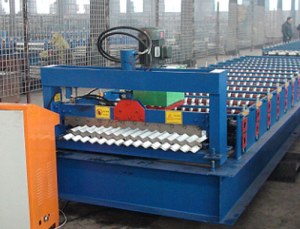

XN8.2-130-910 roof plate forming machine

Hebei Xinnuo 8.2-130-910 roof panel forming machine, the feeding width is 1000mm, the production can be used for the wall. It is widely used in industrial and civil buildings, such as wo rkshops, warehouses, engine library, hangar, gymnasium, exhibition hall, theater room surface and wa ll. This type of machine possesses advanced and innovative technology that can provide convenient ro ller change. This type can be equipped with PLC control and touch screen.
XN8.2-130-910 automatic frequency control roll forming machine
Units including: manual decoiler ,main machine for roll forming ,post cut, hydraulic system ,PLC control ,stacking 1.control system: automatic PLC frequency control ,text screen.
2.roller steps: 9 rows
3.main power: 3kw
4.pump power: 3kw
5.Diameter of roller: Φ72mm
6.max speed: 12m/min
7.feeding width: 1000mm
8.the effective width: 910mm,tolerance ±1/100
9.thickness of the plate: 0.35-0.6mm
10.the dimension of main roll former: 5000mm×1300mm×1450mm
11.roller material: 45#steel,CNC-machined ,heat treatment, buffing, surface for electroplating chromium 0.05mm
