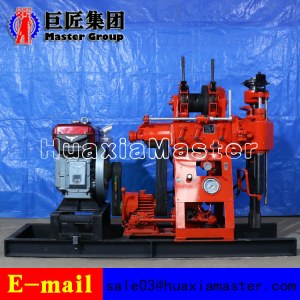

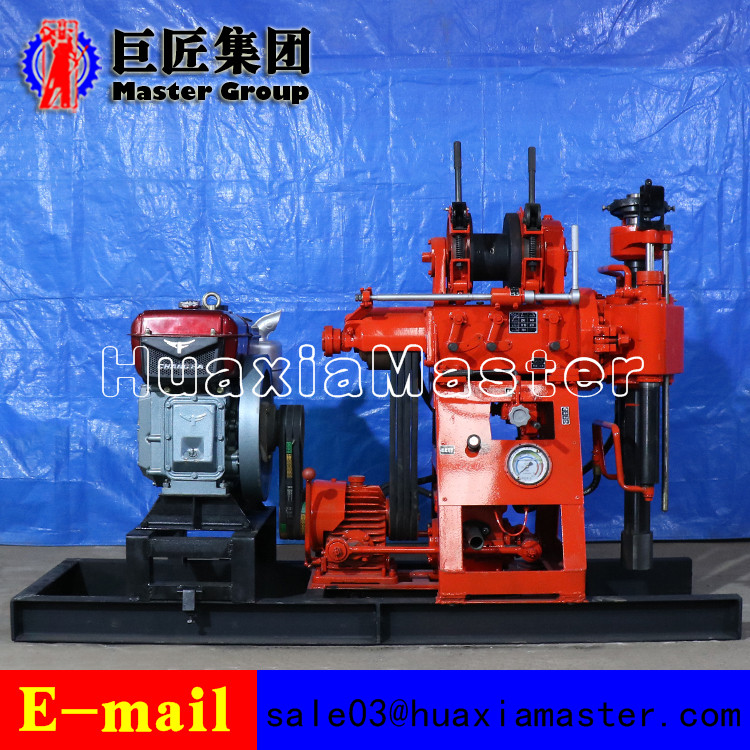

XY-150 Hydraulic Core Drilling Rig
Quantité : 1 SET Prix : $ 4000
Keywords: core drilling rig machine, core drilling rig for hard rock, diamond core drilling rig
1. Applications of XY-150 core drilling rig
- geological survey
- geophysical exploration
- road and high-rise building foundation exploration
- water wells
- blasting holes and other drilling projects
2. Parameters of XY-150 core drilling rig
Drilling depth(m) |
150 |
Maximum opening diameter(mm) |
219 |
The final hole diameter(mm) |
73 |
Rod diameter(mm) |
42/50 |
Spindle speed (r/min) |
140/295/470/790/1010 |
Spindle stroke(mm) |
450 |
Hoisting capacity (kn) |
14 |
Steel wire diameter(mm) |
9.3 |
Maximum pressure (mpa) |
1.2 |
Working pressure (mpa) |
0.7 |
displacement(l/min) |
150 |
Hydraulic pump pressure (mpa) |
1.2 |
Hydraulic pump rotation speed (r/min) |
1800 |
Matched driving power (diesel engine and motor) |
S1105 diesel engine and 11kw motor |
Shandong Master Machinery Group Co.,Ltd.
Sales Manager: Kevin
Mobile Phone: 0086-18865479507
Mail: sale03@huaxiamaster.com
WeChat: 18865479507
QQ: 256618593
TEL: 0086-537-3860909
Skype: 8618865479607
Whatspp: 008618865479507
Website: http://www.sdjujiang.com
Personne à contacter : Kevin Shao, 008618865479507
