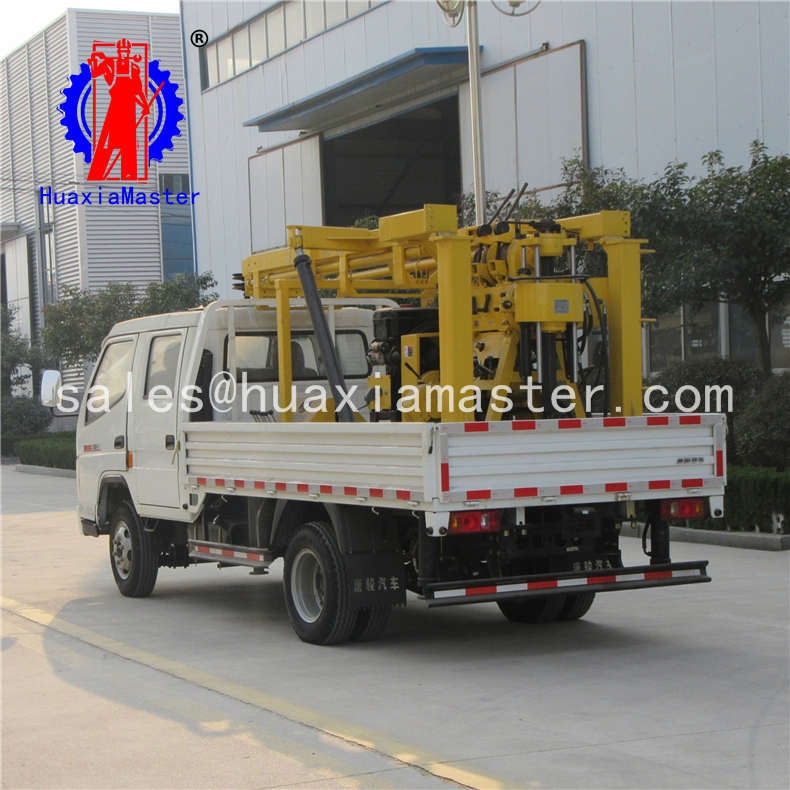

XYC-200 Vehicle-mounted water well drilling rig
Quantité : 1 SET Prix : $ 4000
Characteristics of XYC-200 vehicle-mounted water well drilling rig
- XYC-200 is a multi-function hydraulic vehicle-mounted water well drilling rig.
- the Tang Jun automobile chassis chassis, transmission system and rig winch, mud pump and other important accessories installed in the chassis. the layout is reasonable, compact, and easy to operate.
- It is equipped with high pressure,big flow BW160 mud pump,which can ensure drilling depth and diameter.
- The drilling rig has shifting device, it can move on the vehicle and is convenient to operate while drilling.
- The hydraulic folding mast is safe and convenient to transport
2.Applications of XYC-200 vehicle-mounted water well drilling rig
- road and high-rise building foundation exploration
- all kinds of concrete structure inspection holes
- river embankments
- subgrade grouting holes
- drilling and direct grouting
- civil water well
- ground temperature central air conditioners.
3. Parameters of XYC-200 vehicle-mounted water well drilling rig
|
XYC-200 vehicle-mounted water well drilling rig |
|||
|
Drilling depth(m) |
30-200 |
||
|
Drilling diameter(mm) |
300-75 |
||
|
Drilling angel(mm) |
90-75 |
||
|
Spindle rotating speed(r/min) |
64/128/287/557 |
||
|
Spindle stroke(mm) |
450 |
||
|
Main hoisting capacity (single line)(Kg) |
1600 |
||
|
Main hoisting line capacity (m) |
35 |
||
|
Hoisting speed(r/s) |
17/35/75/151 |
||
|
Wireline diameter(mm) |
12.5 |
||
|
Mast height(mm) |
7000 |
||
|
Mast effective height(mm) |
6500 |
||
|
Kelly/active pipe(mm) |
59*53 |
||
|
Drill rod(mm) |
42/50/60 |
||
|
Drill rig weight(kg) |
1150 |
||
|
Power unit |
Model |
ZS1115 diesel engine |
|
|
Rated power |
14.7kw/2200rpm |
||
|
BW-160 mud pump |
Rated flow(l/min) |
160 |
|
|
Rated pressure(mpa) |
1.3 |
||
|
Driving power(kw) |
5.15 |
||
|
Main machine weight (kg) |
190 |
||
|
Dimension(mm) |
1110*725*965 |
||
|
Chassis |
Model |
95hp light truck The 3.3 meter steeplechase double light card |
|
|
Drive mode |
4*2 |
||
|
Power unit |
Model |
Quanchai 4B2-95C40 |
|
|
Emission standard |
GB3847-2005,GB17691-2005Ⅳ |
||
|
Rated power(kw) |
70 |
||
|
Rotating speed(r/min) |
3200 |
||
Shandong Master Machinery Group Co.,Ltd.
Sales Manager：Kevin
Wechat: 18865479503
Whatsapp: 008618865479503
QQ：256618593
Personne à contacter : Kevin Shao, 008618865479507
