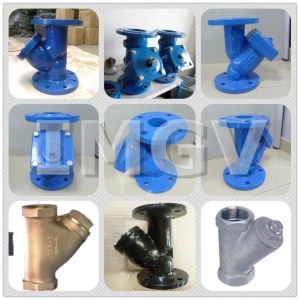

Y Strainer
Tianjin Union Co., Ltd (IMGV)
valve.yummy at foxmail dot com
Technical Specifications:
Design: DIN3202
Face to face: DIN3202-F1
Flange drilling: DIN2531/DIN2532
/DIN2533
Working temperature: 0- 100°C
Working pressure: PN10/PN16
Main Parts and Material:
| Item | Part Name | Material | Item | Part Name | Material |
| 1 | Body | Cast Iron/Ductile Iron | 4 | Bolt & Nut | Carbon Steel |
| 2 | Screen | Stainess Steel | 5 | Plug | Carbon Steel/Cast Iron/Ductile Iron |
| 3 | Gasket | NBR | 6 | Bonnet | Cast Iron/Ductile Iron |
Main Dimensions:
| DN(MM) | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
| L | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | |
| H | 108 | 135 | 156 | 176 | 205 | 245 | 303 | 399 | 469 | 537 | |
| D | PN10 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 395 | 445 |
| PN16 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 | |
Features:
1. Iron strainers are complete with Flat Face flange in accordance with ASME B16.1.
2. Strainer body meets applicable ASME Standard.
3. One piece cast body.
4. Strainer is equipped with bolted cover flange that utilize a flat gasket seal.
5. Low pressure drop.
6. Upper and lower machined seats.
7. 304 SS perforated screens are standard.
8. Drain/blow-off connection furnished with plug as standard.
9. Generous screen area and properly proportioned straining chamber to minimize initial pressure drop
while maximizing time between cleanings.
10. Compact end to end dimension.
Our company IMGV doing valves for 20 years to 50 countries, welcome to visit our factory.
Sample can supply if needed.
best regards
Yummy
