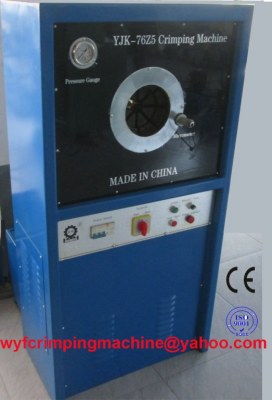

YJK-76z5 Hydraulic Hose Crimping Machine
Quantité : 1 set Prix : USD $15000
Product Description
The YJK-76z5 Crimper has the ability to crimp hoses from ¼ inch to 3 inches diameter and it is used to withhold hose assemblies in the production line. It is used to withhold a wide range of hoses such as low or high pressure oil pipe, gas or water pipe and cable joint.
Technical Data
|
Crimping Force (Ton) |
860 |
|
Max Hose Diameter (2 wire) |
3½″ |
|
Max Hose Diameter (4 wire) |
3″ |
|
Max Hose Diameter (6 wire) |
2½″ |
|
Max Industrial Hose Diameter |
3½″ |
|
Max Opening w/o Dies (mm) |
120 |
|
Dimension (L*W*H) (mm) |
900*500*1600 |
|
Weight (kg) |
560 |
|
Power Supply (V) |
380 |
|
Motor Power (kw) |
3/5.5 |
|
Manual/Auto Crimping |
Yes |
|
Inch/Metric Settings |
Metric Only |
|
Dies Sets |
12 |
Die specifications
|
Model |
Φ6 |
Φ8 |
Φ10 |
Φ13 |
Φ16 |
Φ19 |
Φ25 |
Φ32 |
Φ38 |
Φ51 |
Φ64 |
Φ76 |
|
Crimping range (mm) |
15-25 |
18-28 |
20-30 |
23-33 |
26-36 |
29-39 |
37-47 |
46-56 |
51-61 |
63-73 |
78-89 |
78-89 |
|
Die length (mm) |
65 |
65 |
65 |
65 |
65 |
65 |
65 |
80 |
80 |
80 |
80 |
80 |
Personne à contacter : Stephan King, 86 18660625023
Bonne affaire : acheter au vendeur
