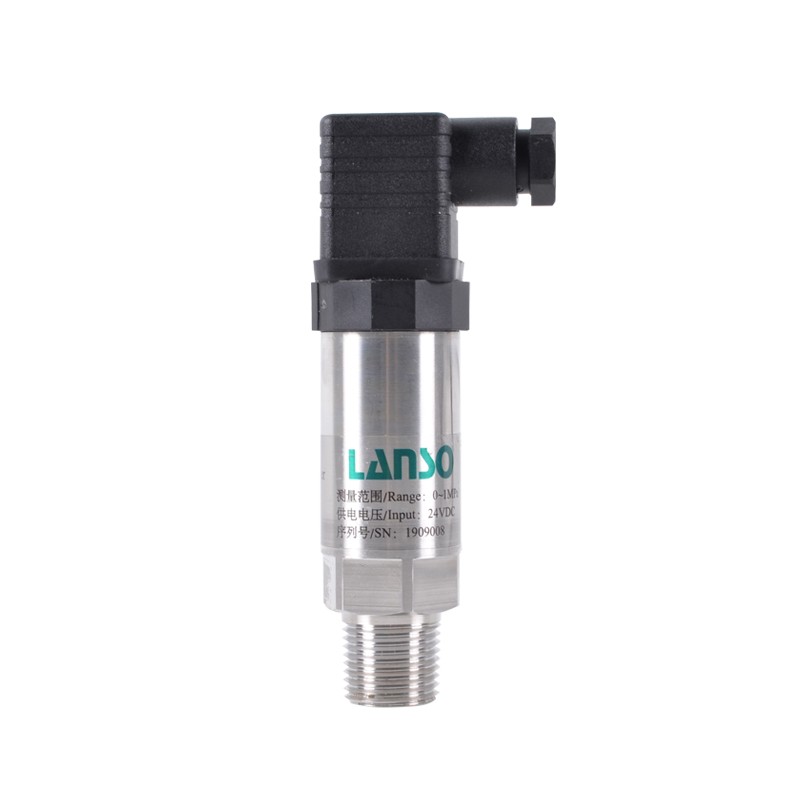

YS-30 Silicon Piezoresistive Pressure Transmitter
Our current pressure measuring equipment line features Gas Density Monitor Series, Pressure Gauges and Meters, Differential Gauges, Diaphragms and Valves, Online Monitoring Systems, Filling Fluids and Accessories. Primary clients industries include electrical power systems, biotechnology & pharmaceuticals, food & beverages, oil & gas and petrochemical industries.
Best for measuring pressure of corrosive fluids (liquids & gas) in industrial processes. Various Signals for Different Industrial Standards
Application of YS-30 Silicon Piezoresistive Pressure Transmitter
- Oil and Gas
- Petrochemical Industry
- Electrical Equipment
- Mechanical Processing
- Food and Beverage
- Biopharmaceutical Industry
Feature of YS-30 Silicon Piezoresistive Pressure Sensors
- Small scale
- High precision
- Standard signal output
- IP65
- process connection can be customized
Technical Data of YS-30 Silicon Pressure Transducer
|
Certification: |
CPA (China), CRN (Canada) |
|||||||
|
Accuracy: |
0.25% & 0.5% |
|||||||
|
Overpressure: |
150% x Full Scale Range |
|||||||
|
Wetted Material: |
Stainless Steel |
|||||||
|
Case Material: |
Stainless Steel |
|||||||
|
Power Source: |
11-30V |
|||||||
|
Signal Output: |
4-20mA |
|||||||
|
Power Load: |
≤600Ω |
|||||||
|
Response Time: |
<1ms</span> |
|||||||
|
Process Connection: |
M20 x 1.5, G½, ½NPT and Others |
|||||||
|
Electrical Connection: |
Angular Connector Form A EN175301-803, PG9 or PG11 |
|||||||
|
Working Temperature: |
-20℃ to 60℃ |
|||||||
|
MPa |
0~0.1 |
0~0.16 |
0~0.25 |
0~0.4 |
0~0.6 |
0~1 |
||
|
0~1.6 |
0~2.5 |
0~4 |
0~6 |
0~10 |
0~16 |
|||
|
0~25 |
|
|
|
|
|
|||
|
bar |
0~1 |
0~1.6 |
0~2.5 |
0~4 |
0~6 |
0~10 |
||
|
0~16 |
0~25 |
0~40 |
0~60 |
0~100 |
0~160 |
|||
|
0~250 |
|
|
|
|
|
|||
|
psi |
0~15 |
0~30 |
0~60 |
0~100 |
0~160 |
0~200 |
||
|
0~300 |
0~600 |
0~800 |
0~1000 |
0~1500 |
0~2000 |
|||
|
0~3000 |
0~4000 |
0~5000 |
|
|
|
|||
* Range could also be converted to units including millibar (mbar), kg/cm2 and kPa.
Options of YS-30 Silicon Pressure Sensor
Process Connection Dimensions Customizable
