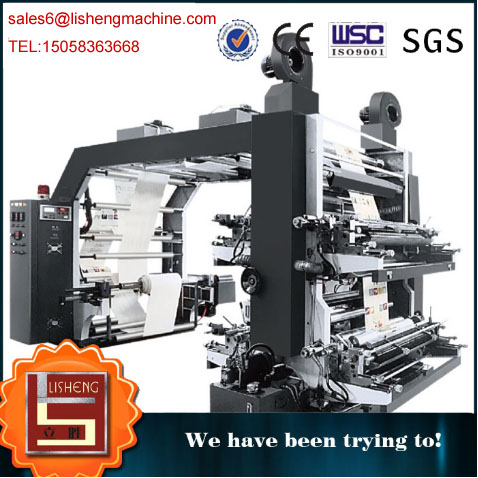

Ytb-4600 Plastic Printer (CE)
Quantité : 1 set Prix : USD 1000-10000
4-color 600mm High Speed Flexo printing machine


Use:
This machine is suitable for printing such packing materials as PE, PP bag, cellophane and roll pap er, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermar ket handbag, vest bag and clothes bag, etc.
Characteristics:
1.Reasonable structure, advanced technology, easy operation, stable performance, accurate color regi ster.
2.Adopting high-quality motor, high-quality inverter, save the electricity, reduce the run fluctuati on.
3.When the machine is stopped working, printing rolls still keep moving; when rise the printing roll er ,ink motor running automatically ;when fallen the printing roller, ink motor stop running automat ically.
4.The machine is equipped with blower and heater; and the heater employed central temperature contro l system.
5..The use of individual drying oven and cold wind system can effectively prevent the ink adhesion a fter printing.
6..Roller adopts special steel processing, and through special treatment, greatly reduce the beating range.
7.Printing roller uses static balance and dynamic balance processing, hard anode oxidation treatment , small resistance, beating small, achieves finally perfect printing effect.
8..Accurate printing effect achieved by special gear transmission device.
9.The printing machine all can choose advance configurations to achieve the high quality, the high-d efinition effect.
SUITABLE MATERIAL:
|
Kraft paper: 40-350g/㎡ single-sided coated paper:30-350g/㎡ copy paper:15-350g/㎡ firecrackers and paper:40-350g/㎡ paper money and incense:25-350g/㎡ silicone paper:50-350g/㎡ coated paper:30-350g/㎡ dust-free paper:25 -350g/㎡Release paper:40-350g/㎡ composite paper:30-350g/㎡ |
|
woven:15-120g/㎡ Weave fabric:15-500g/㎡ |
|
PVC: 10-120g/㎡ OPP:10-120g/㎡ PE :10-120g/㎡PET: 10-120g/㎡CPP:10-120g/㎡ |
|
Aluminium Foil |
|
Main Technical Specification: |
|
|
Model |
YTB-4600 |
|
Material feeding width |
600mm |
|
Max printing width |
560mm |
|
Thickness of plate |
1.7mm 2.28mm 3.94mm |
|
Printing length |
280-1000mm |
|
Printing speed |
10-100m/min |
|
Max. Diameter of roll material |
Φ450mm |
|
Register precision |
±0.03mm |
|
Total Power |
21KW |
|
Weight of machine |
5000Kg |
|
Overall Dimension(L×W×H) |
5500×1900×3000mm |
