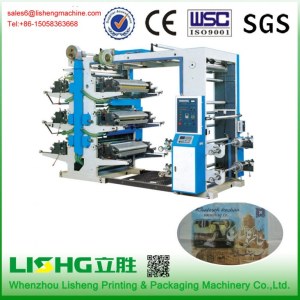

Ytb-6800 Plastic Film Roll Printing Machine

Product Details

Basic Info.

Model NO.: YTB-4800
Type: Ink Jet
Embossing Structure: Rotary Letterpress
Structure: Stacked
Application: Flexible Packaging Printing
Automatic Grade: Automatic
Printing Speed: 10-120m/Min
Max.Width of Printing Material: 800mm
Max.Printing Width: 760mm
Color: 6
Length Rang of Printed Products: 191-914mm
Max.Diameter of Material Roll: 450mm
Printing Run Speed: 5-80m/Min
Total Power: 21
Weight of Machine: 5000kg
Overall Diamension(L*W*H): 5500*1900*3000mm
Name: Ytb-4800 Plastic Film Roll Printing Machine
Export Markets: Global

Additional Info.

Trademark: LISHENG
Packing: Film Cober
Standard: STANDARDS
Origin: China
HS Code: 84431600
Production Capacity: 10/Month

Product Description

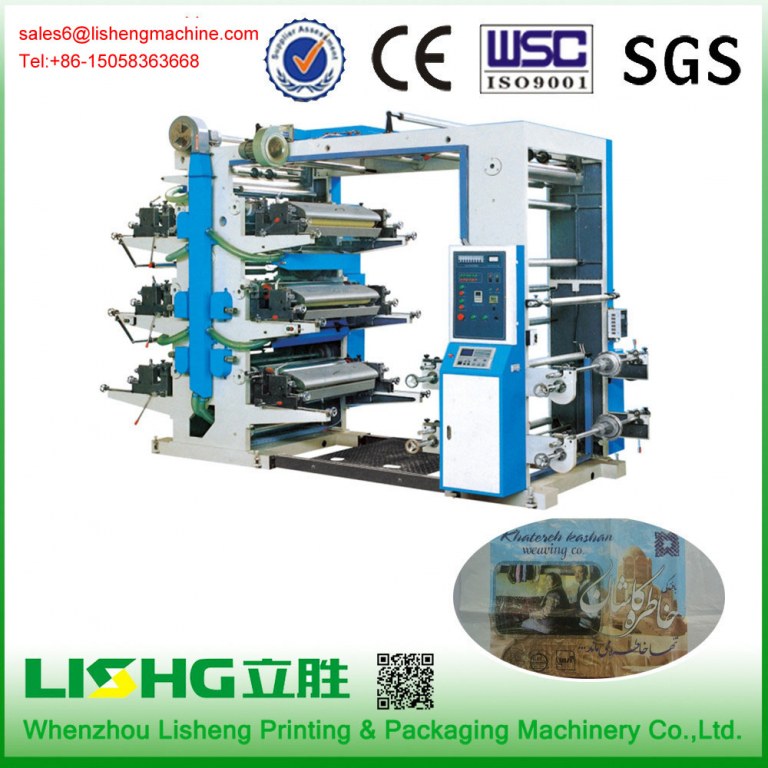

YTB-4800 plastic film Roll Printing Machine

Usage:

It is suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane an d paper
in roll, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, su permarket
handbag, vest bag and clothes bag, etc.
It's quite commonly used for small order quantity printing service.

Performance and Features:

1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine autom atically

at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lif ting.
4. The printing ink is spread by the LPI 600 Ceramic anilox cylinder with even ink color.
5. Reliable auto drying system coordinated with high

speed rotation, it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to ma ke it easy

operate the machine when the plate is installed.

9.Auto Magnetic Power Tension Controller

Main technical parameter:

Model

YT-6600

YT-6800

YT-61000

Max.Width of printing Material

600mm

800mm

1000mm

Max.Printing Width

560mm

760mm

960mm

Length Rang of Printed Products

191-914mm

191-914mm

191-914mm

Max.Diameter of Material roll

450mm

450mm

450mm

Printing Speed

5-60m/min

5-60m/min

5-60m/min

Thickness of Plate

2.38mm

2.38mm

2.38mm

Total Power

22

24

36

Weight of Machine

3000kg

3200kg

3500kg

Overall Diamension(L*W*H)

2300*1600*2200mm

2300*1800*2200mm

2300*2000*2200mm




Our Service:
1) All Our Machines with CE certificate
2) Machines exported to Canada, USA, UAE, Russia, Africa,Asia , and so on
3) All machines will be examined and test before delivery
4) Offer you skillful knowledge on machines and If need, engineer will help you train workers how to operate
5) Delivery time for standard machine is 35 days , If urgent , talk with me .
6) Guarantee for one year , Long Life Services


Model

YTB-6600

YTB-6800

YTB-61000

Max.Width of printing Material

600mm

800mm

1000mm

Max.Printing Width

560mm

760mm

960mm

Length Rang of Printed Products

191-914mm

191-914mm

191-914mm

Max.Diameter of Material roll

450mm

450mm

450mm

Printing Speed

5-80m/min

5-80m/min

5-80m/min

Thickness of Plate

2.38mm

2.38mm

2.38mm

Total Power

21

23

25

Weight of Machine

5000kg

5500kg

6000kg

Overall Diamension(L*W*H)

5500*1900*3000mm

2300*2100*2200mm

2300*2300*2200mm




FAQ

1.Are You a Factory or Trading Company?
We are a factory, with 20 years experience on machines, our products sell very well all over the world.

2.Where is your factory located? How can I visit there?
Our factory is located in Ruian Zhejing China. The nearest airport is Wenzhou airport. It's about 40 minutes by plane from Shanghai (5 hours by train). All our cliens, from home or abroad, are warmly welcomed to visit us.

3.What can the machine print on?
Our machine is multifunction, can do roll to roll printing, such as paper, plastic, woven,nonwoven and so on .
Surely, you can send us your products, and we'll offer you the proper machine.

4.Can I get some samples? How can I get it ?
Yes, we can send you some free sample, but you are reponsable for delivery charages of TNT or DHL.

5.How about the after service?
We can arrange engineers to service overseas.

6.Why choose Lisheng Machinery?
We are one of leaders in this field(in China). Our high-quality products and service enabled us to expand our market from china to more than 60 countries.

If you have any doubts, welcome to consult.
