Z101020HD 8001280 7 Inch LCD Screen with HDMI Controller Board 300 Nits Luminance

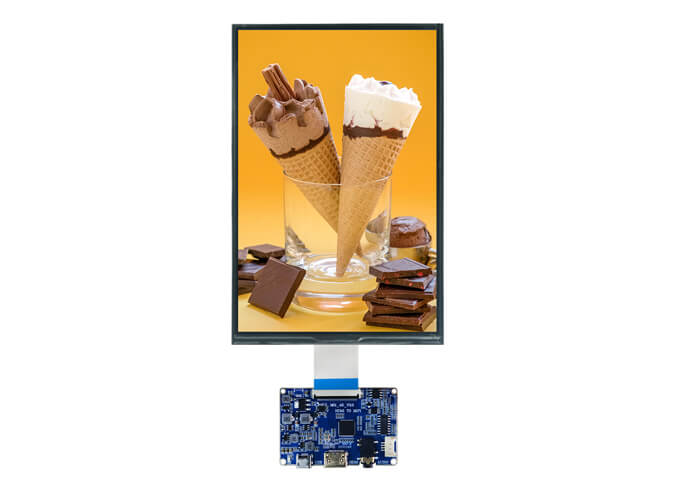

This 7-inch HDMI TFT LCD screen was created specifically for Raspberry Pi. All you need to do to get started is plug in two driver boards.
Specification of Z101020HD 800*1280 7 Inch LCD Screen with HDMI Controller Board 300 Nits Luminance
No. |
Item |
Specification |
Unit |
1 |
Display Size (Diagonal) |
10.1 |
inch |
2 |
Display Resolution |
800 (H) × RGB × 1280 (V) |
pixels |
3 |
Pixel Pitch |
56.4 (H) × 169.2 (V) |
um |
4 |
LCM Outline Dimension |
143.10 (W) × 228.60 (H) × 2.6 (T) |
mm |
(Without FPC) |
|||
5 |
LCD Outline Dimension |
139.36 (W) × 225.80 (H) × 0.8 (T) |
mm |
6 |
LCD Active Area |
135.36 (W) × 216.58 (H) |
mm |
7 |
View Direction (Gray Inversion) |
FULL VIEW |
- |
8 |
Driver IC |
GH8555BL |
- |
9 |
Pixel Arrangement |
RGB-Stripe |
- |
10 |
Display Mode |
Normal Black |
- |
11 |
Pixel driving Element |
a-Si TFT |
- |
12 |
LCD Transmittance |
Typ.: 5.41% Min: 4.65 |
- |
13 |
LCD Contrast Ratio |
Typ.: 1000 Min: 800 |
- |
14 |
FPC Version |
Z101020-P40H V1 |
- |
15 |
Interface |
MIPI |
- |
16 |
Operating Temperature |
-20°C~ 70°C |
- |
17 |
Storage Temperature |
-30°C~ 80°C |
- |
18 |
Backlight Arrangement |
LED/7 Series 4 Parallel (28 lights in total) |
- |
19 |
Luminance |
310 |
nit |
20 |
Weight |
0.183 |
kg |
Interface Definition Description of Z101020HD 800*1280 7 Inch LCD Screen with HDMI Controller Board 300 Nits Luminance
PIN NO. |
PIN DEF. |
FUNCTION DESC. |
1 |
NC |
No Connection |
2-3 |
VDD |
POWER SUPPLY (3.3V) |
4 |
NC |
No Connection |
5 |
RESET |
LCM RESET PIN (3.3V) |
6 |
NC |
No Connection |
7 |
GND |
Ground |
8 |
D2N |
Negative MIPI differential data input |
9 |
D2P |
Positive MIPI differential data input |
10 |
GND |
Ground |
11 |
D1N |
Negative MIPI differential data input |
12 |
D1P |
Positive MIPI differential data input |
13 |
GND |
Ground |
14 |
CLKN |
Negative MIPI differential CLOCK input |
15 |
CLKP |
Positive MIPI differential CLOCK input |
16 |
GND |
Ground |
17 |
D0N |
Negative MIPI differential data input |
18 |
D0P |
Positive MIPI differential data input |
19 |
GND |
Ground |
20 |
D3N |
Negative MIPI differential data input |
21 |
D3P |
Positive MIPI differential data input |
22 |
GND |
Ground |
23-24 |
NC |
No Connection |
25 |
GND |
Ground |
26-29 |
NC |
No Connection |
30 |
GND |
Ground |
32-32 |
LEDK |
POWER SUPPLY- FOR BACKLIGHT CATHODE |
33-38 |
NC |
No Connection |
39-40 |
LEDA |
POWER SUPPLY- FOR BACKLIGHT ANODE |
